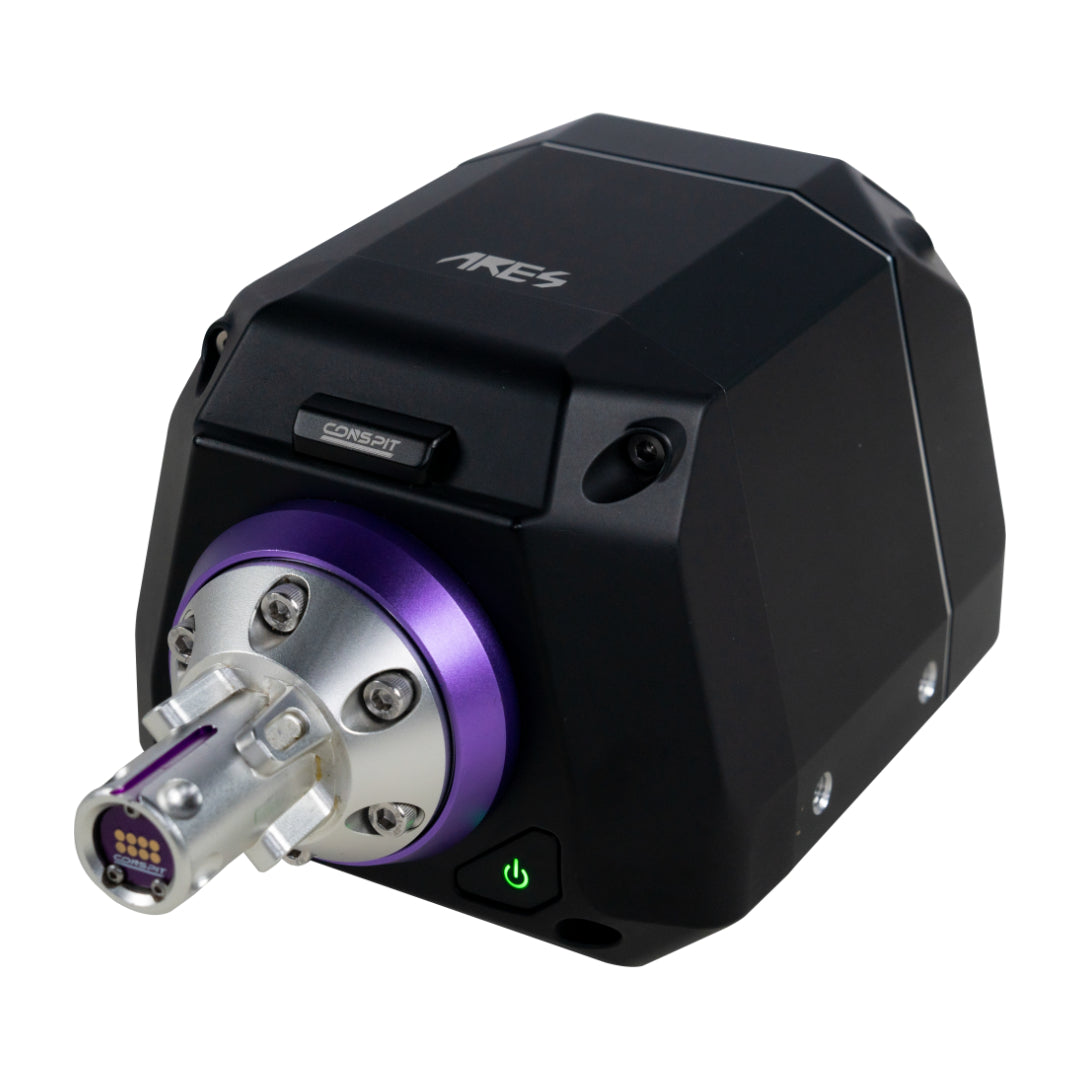

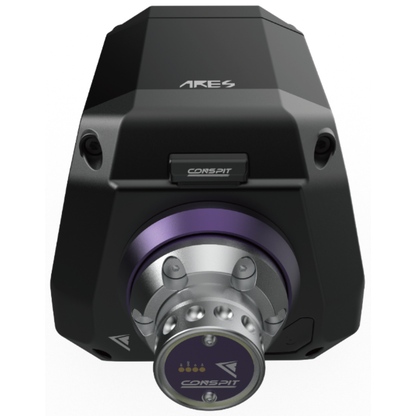

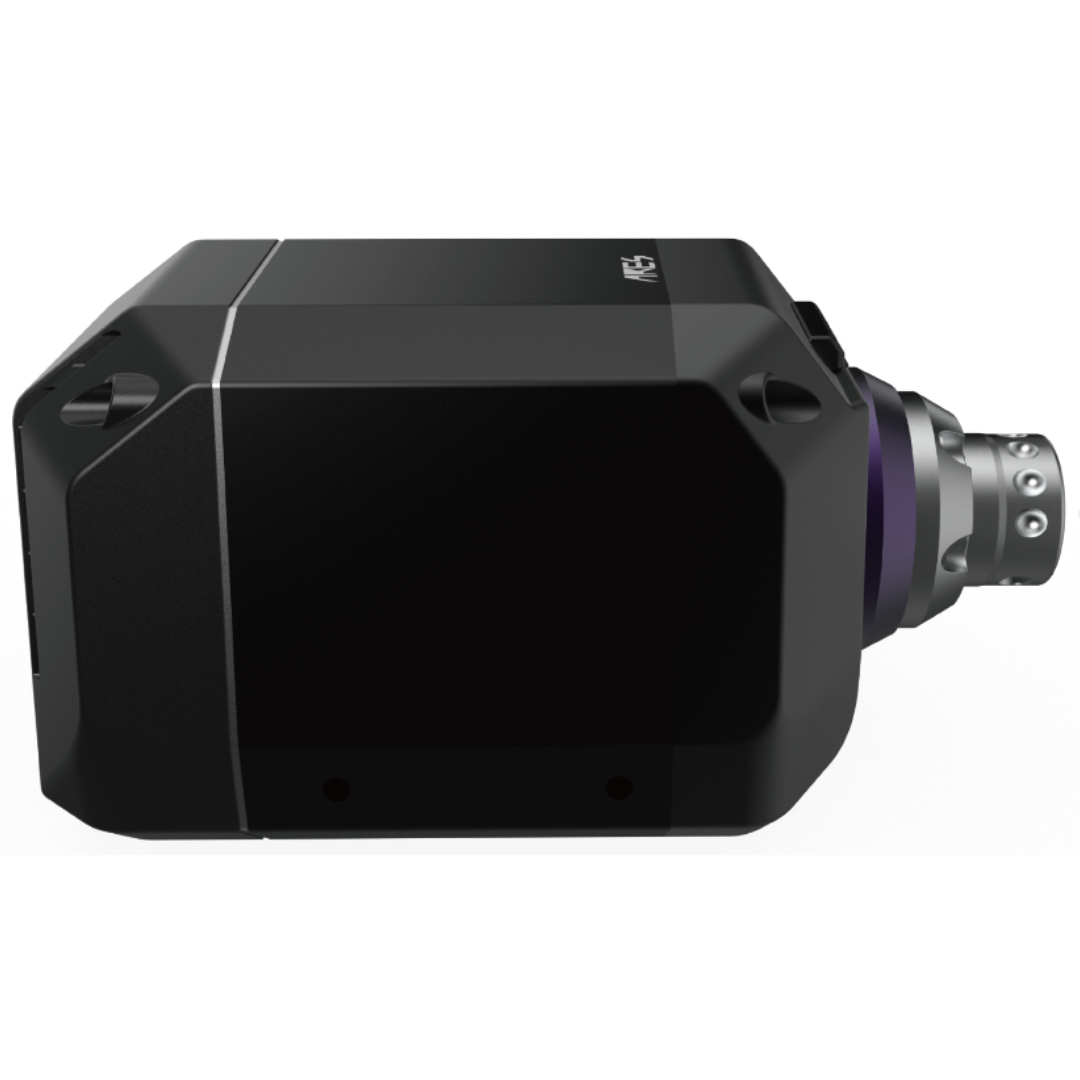

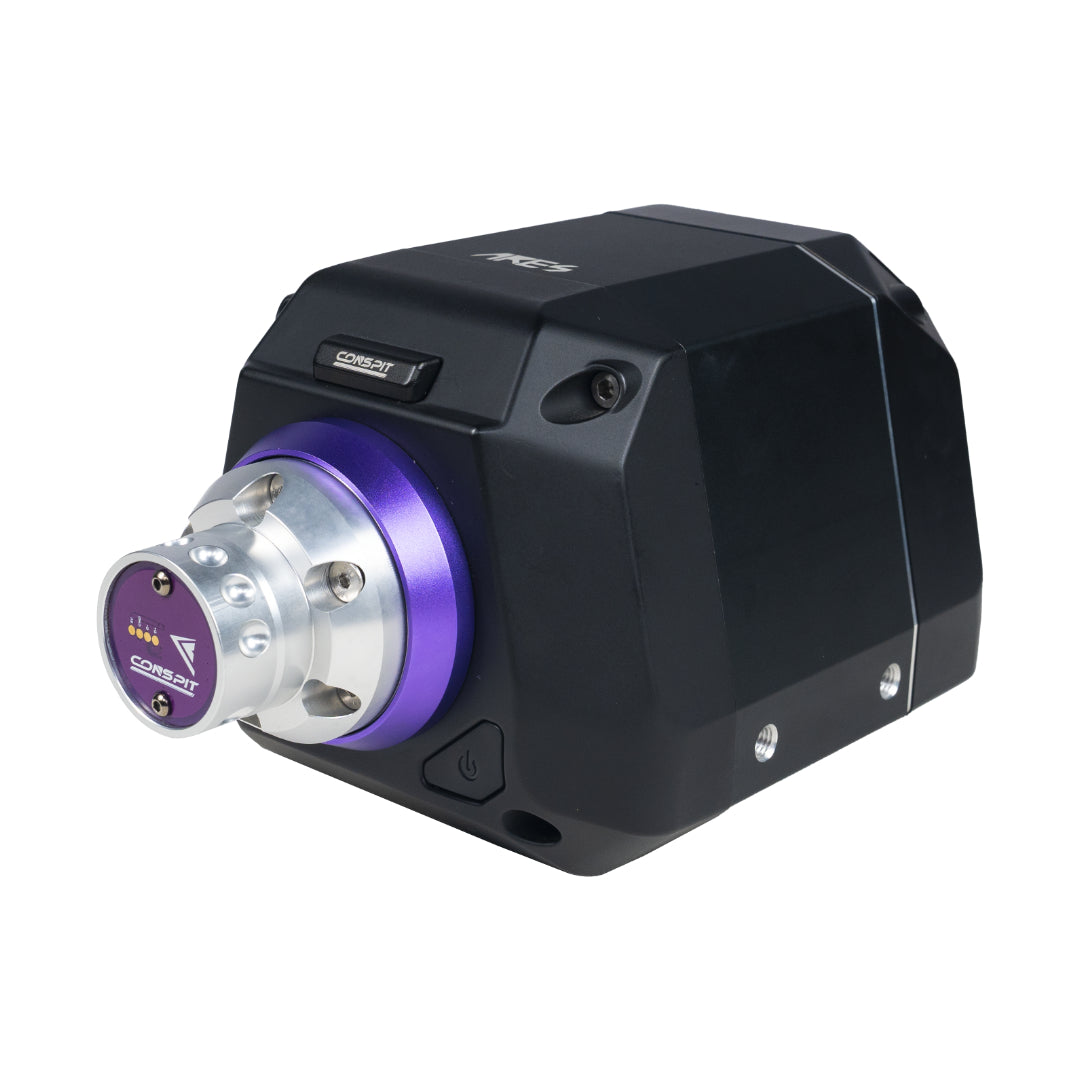

Conspit ARES 12 CDR
Conspit ARES 12 CDR
Sim Motion
Free Shipping on Orders over $249.99
Couldn't load pickup availability
Description
Description

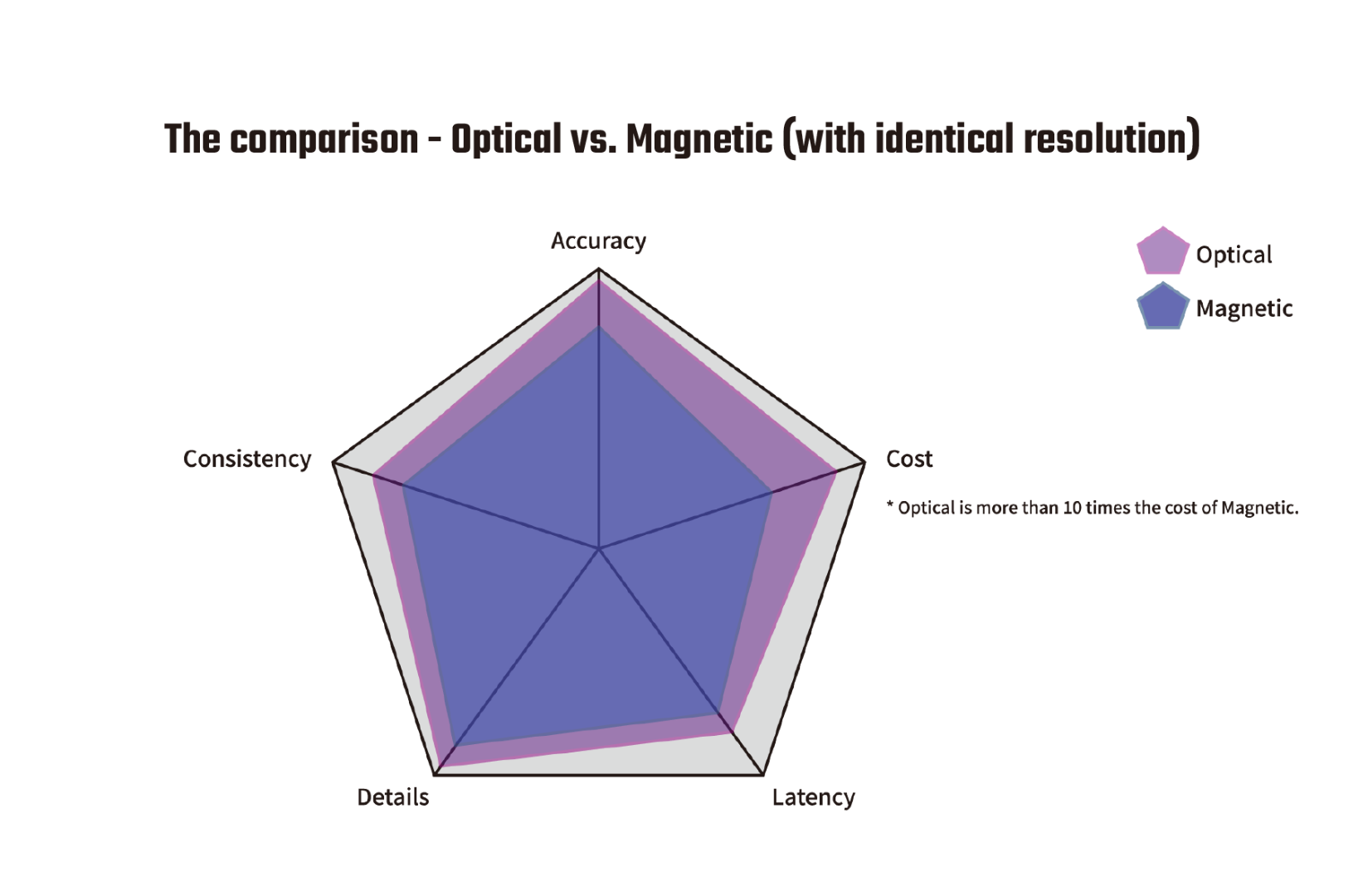

The Comparison - Optical vs. Magnetic
The optical encoder used in the Ares Wheelbase offers superior performance compared to magnetic encoders with the same resolution. It provides higher accuracy, smoother feedback, and greater reliability, ensuring consistent and precise input detection over time.

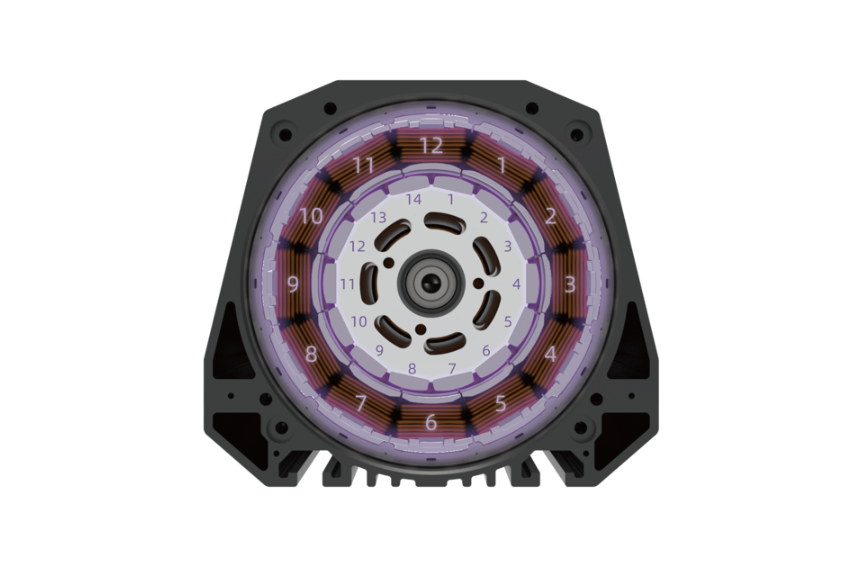

Dual Skewed Pole Design
Using a dual skewed pole design with both stator and rotor skewed poles, this optimizes cogging torque, significantly reducing torque ripple, electromagnetic vibration, and noise, resulting in excellent NVH (Noise, Vibration, and Harshness) performance.
Ultra-High Torque Density
Compact size, immense power. Utilizing ultra-high magnetic permeability cores and powerful NdFeB magnets, along with optimal air gap ratio and high slot fill factor design, this motor achieves high torque density and delivers powerful output.
Minimized Cogging Torque
After multiple simulations and prototype iterations, Ares has perfected the electromagnetic design. The dual skewed pole stator and rotor, high slot-to-pole ratio, optimal air gap, and precise magnetic circuit minimize cogging torque, delivering an exceptionally smooth steering feel.

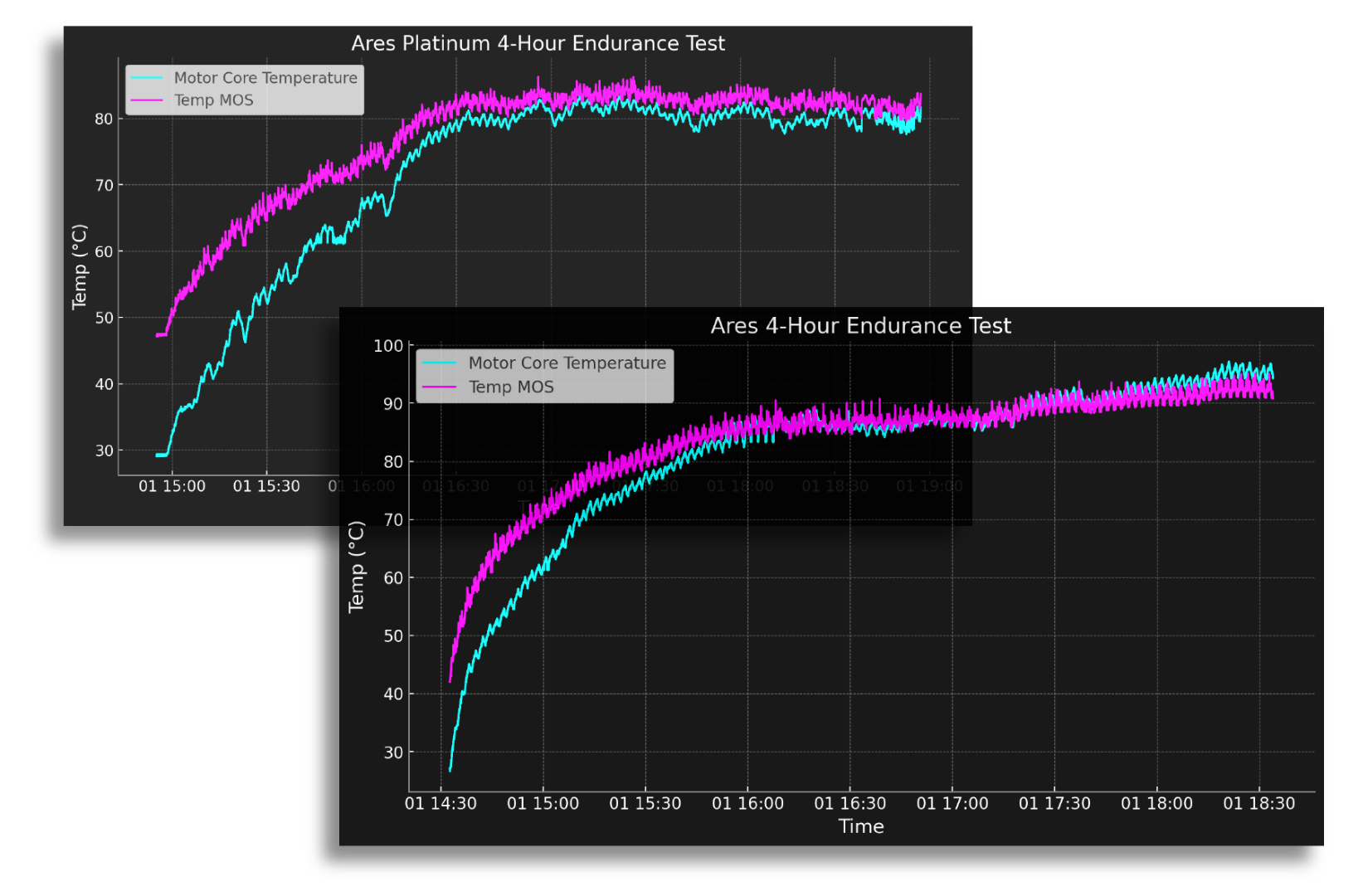

Advanced Thermal Management
Real-time, high-frequency monitoring of the system's temperature ensures stable motor and control system operation, delivering exceptional thermal management performance.
Exclusive Actual Torque Performance Testing

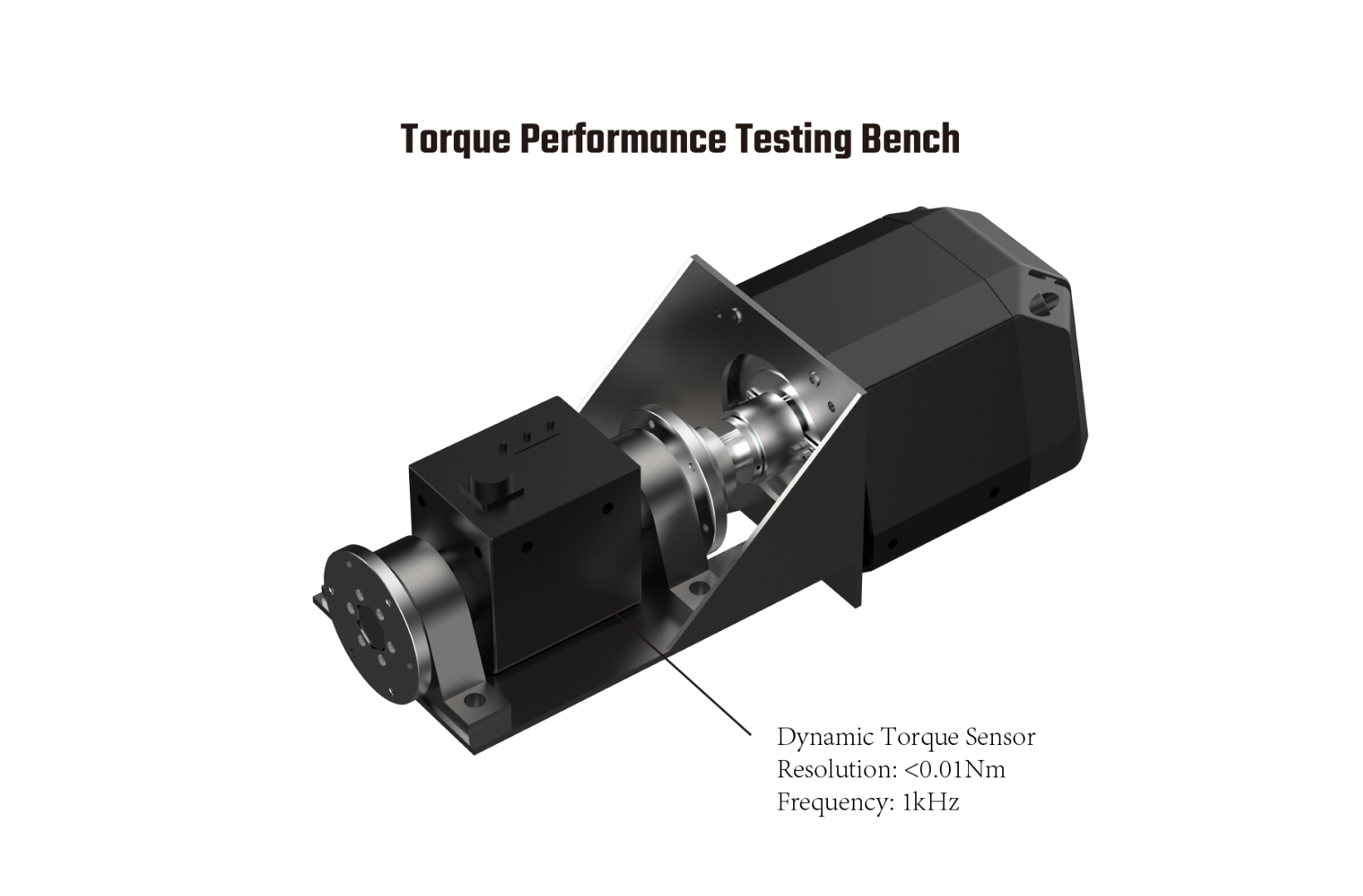

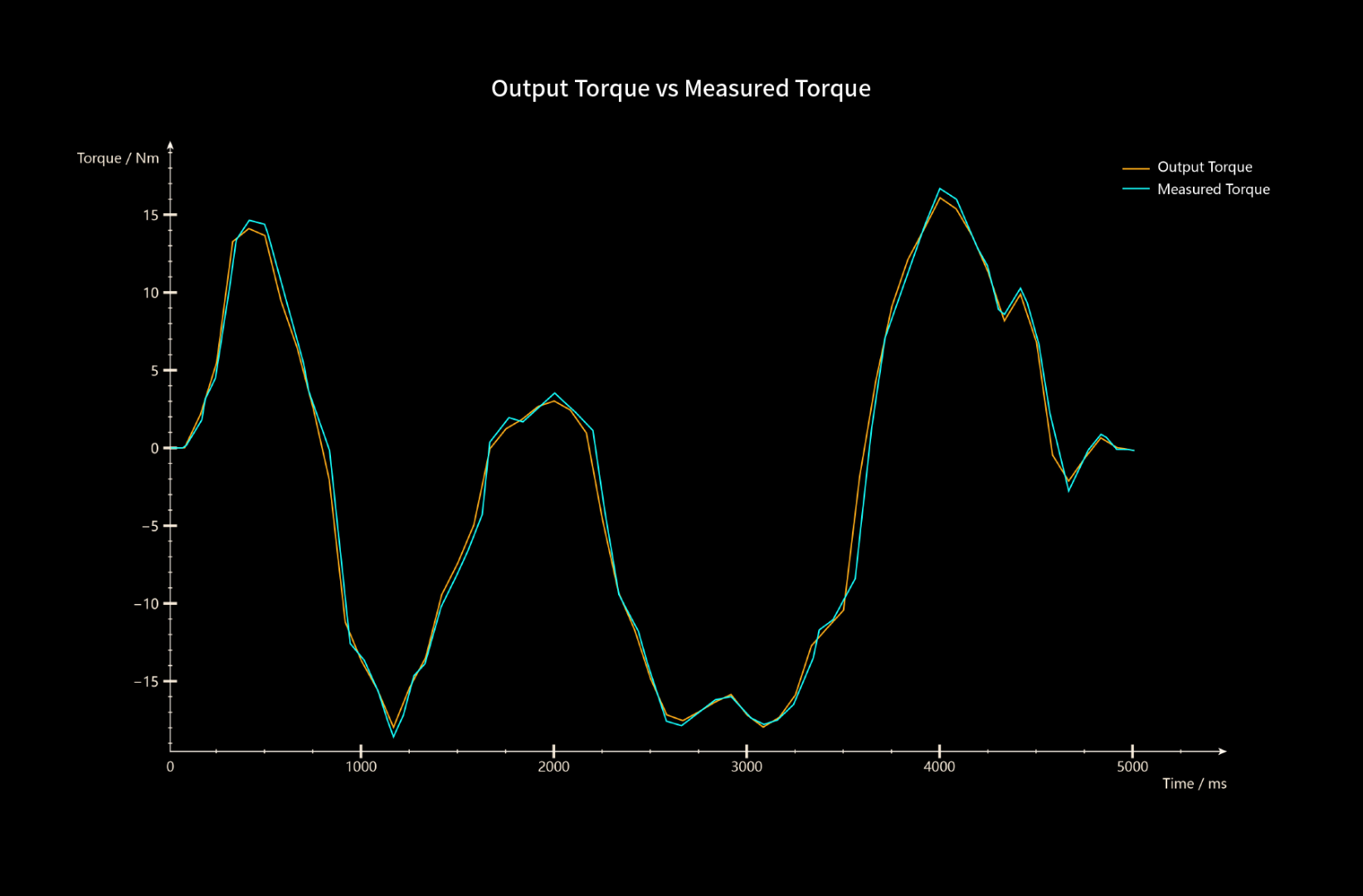

At CONSPIT, we reject virtual claims. Throughout the Ares wheelbase development, we employed precision control industry-grade testing to ensure all performance data is grounded in real evidence. Validation involved a high-precision dynamic torque sensor placed between the wheel and motor output shaft, with resolution below 0.01Nm and response up to 1kHz. This enabled real-time monitoring of actual torque at the driver’s hands, precisely matched against motor-reported signals for accurate performance tuning.
Precision Calibration and Optimization
In addition to providing precise calibration of torque parameters, The Testing also offers a reliable tool for objectively quantifying base feel adjustments. Characteristics like torque dynamic range, responsiveness, and high-frequency noise, which heavily influence the feel, can be evaluated and optimized.

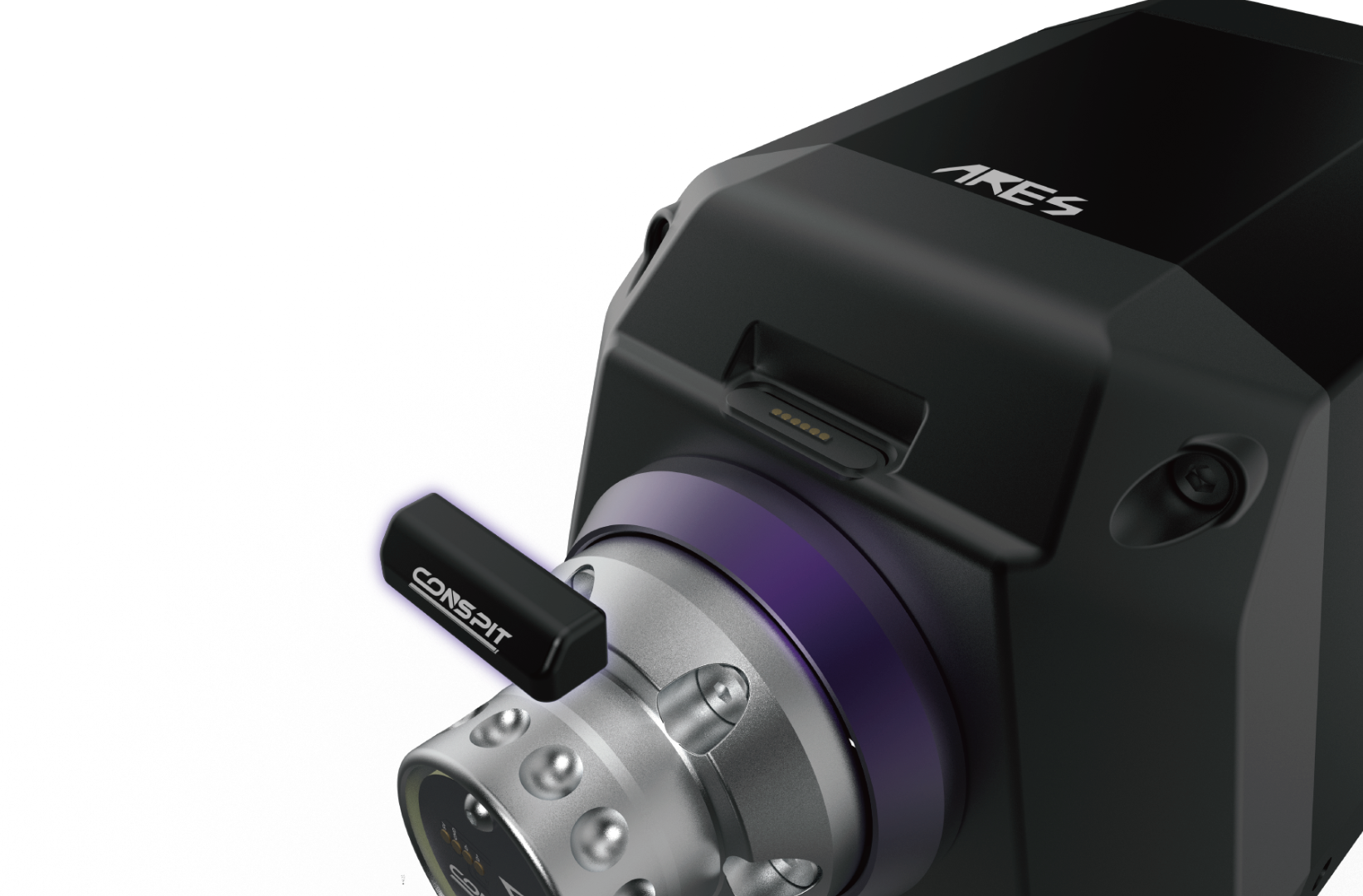

POGO Module for Future Expansion
The front of the base is equipped with magnetic contacts for easy installation and future expansion of various functional components.

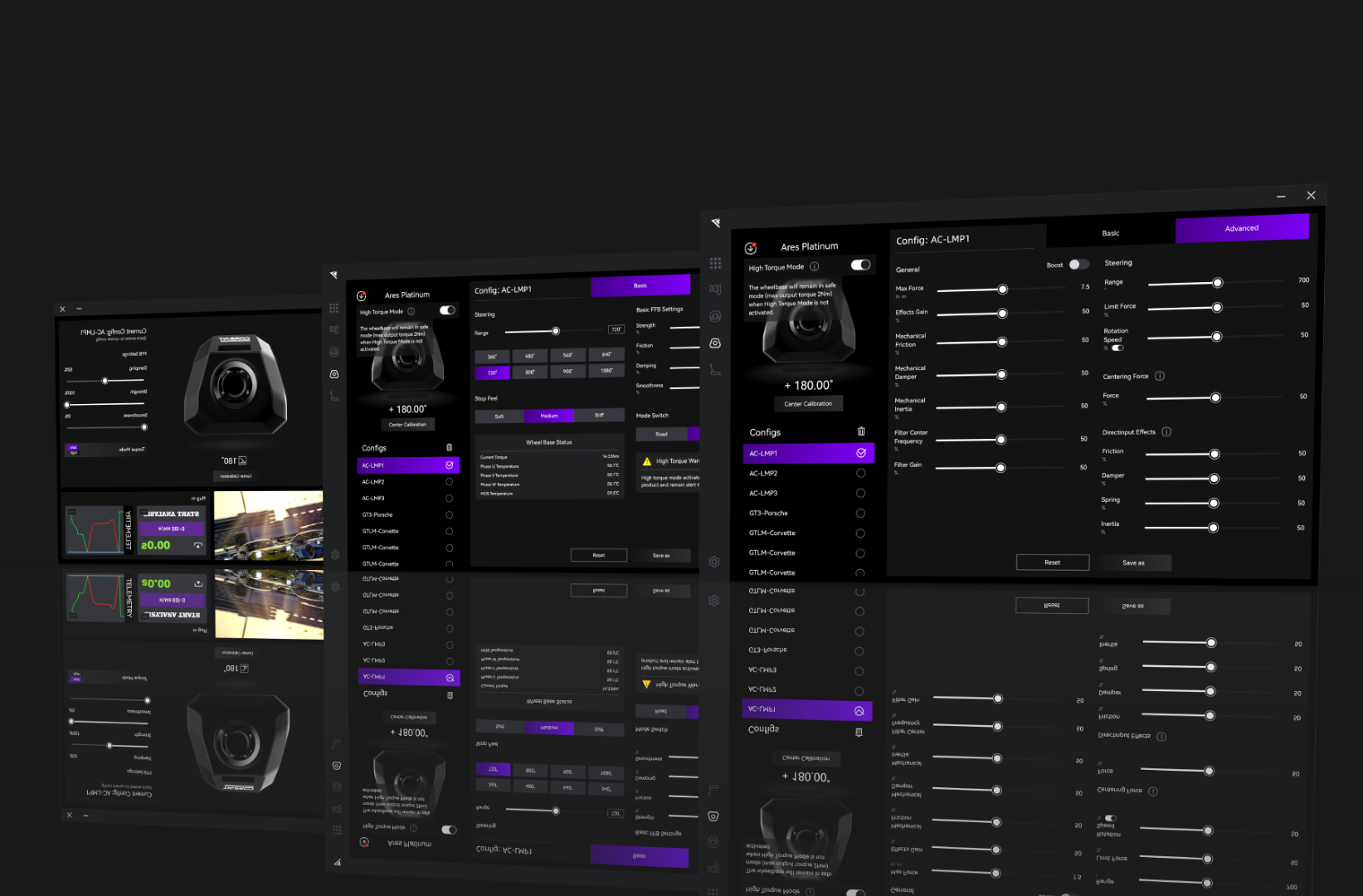

Conspit Link 2.0
Easily configure wheelbase functions, fine-tune FFB, monitor status, and create custom presets using Conspit Link 2.0 software. Featuring official presets crafted by professional drivers and vehicle dynamics engineers, allowing for quick switching between games or vehicle setups, including presets from renowned pro drivers like Laurin Heinrich.
Specifications
