Trak Racer 4CH 40W Low-Frequency Class-D Amplifier with 2 Bass Shakers and Rig Mounts

The Trak Racer 4CH 40W Bass Shaker Kit with Amplifier and Rig Mounts is a quad-channel tactile feedback system engineered for sim racers, flight sim users, and immersive gaming enthusiasts who want localized vibration exactly where control inputs happen. Designed to mount directly to pedals, shifters, and handbrakes, this bass shaker kit transforms ABS pulses, wheel slip, drivetrain load, surface texture, and mechanical feedback into precise physical sensation for greater immersion and control.

KEY BENEFITS

• Delivers localized tactile feedback directly to pedals, shifters, and handbrakes
• Improves braking modulation through physical ABS and wheel lockup cues
• Enhances throttle precision with traction loss and wheelspin feedback
• Makes gear changes feel more mechanical and immersive
• Improves rally and drift handbrake realism through rear slip feedback
• Reduces muddy full-rig vibration by targeting specific control zones
• Supports sim racing, flight simulation, FPS gaming, and music immersion
• Provides a cost-effective immersion upgrade without bulky motion systems

WHO IT’S FOR

The Trak Racer 4CH 40W Bass Shaker Kit with Amplifier and Rig Mounts is designed for sim racers, rally and drift drivers, flight sim users, esports competitors, and immersion-focused gamers who want more detailed tactile feedback than seat-only haptics can provide. It is especially valuable for GT, Formula, Rally, Drift, and advanced simulator users seeking faster reaction cues and greater physical realism through control-specific vibration.

KEY FEATURES

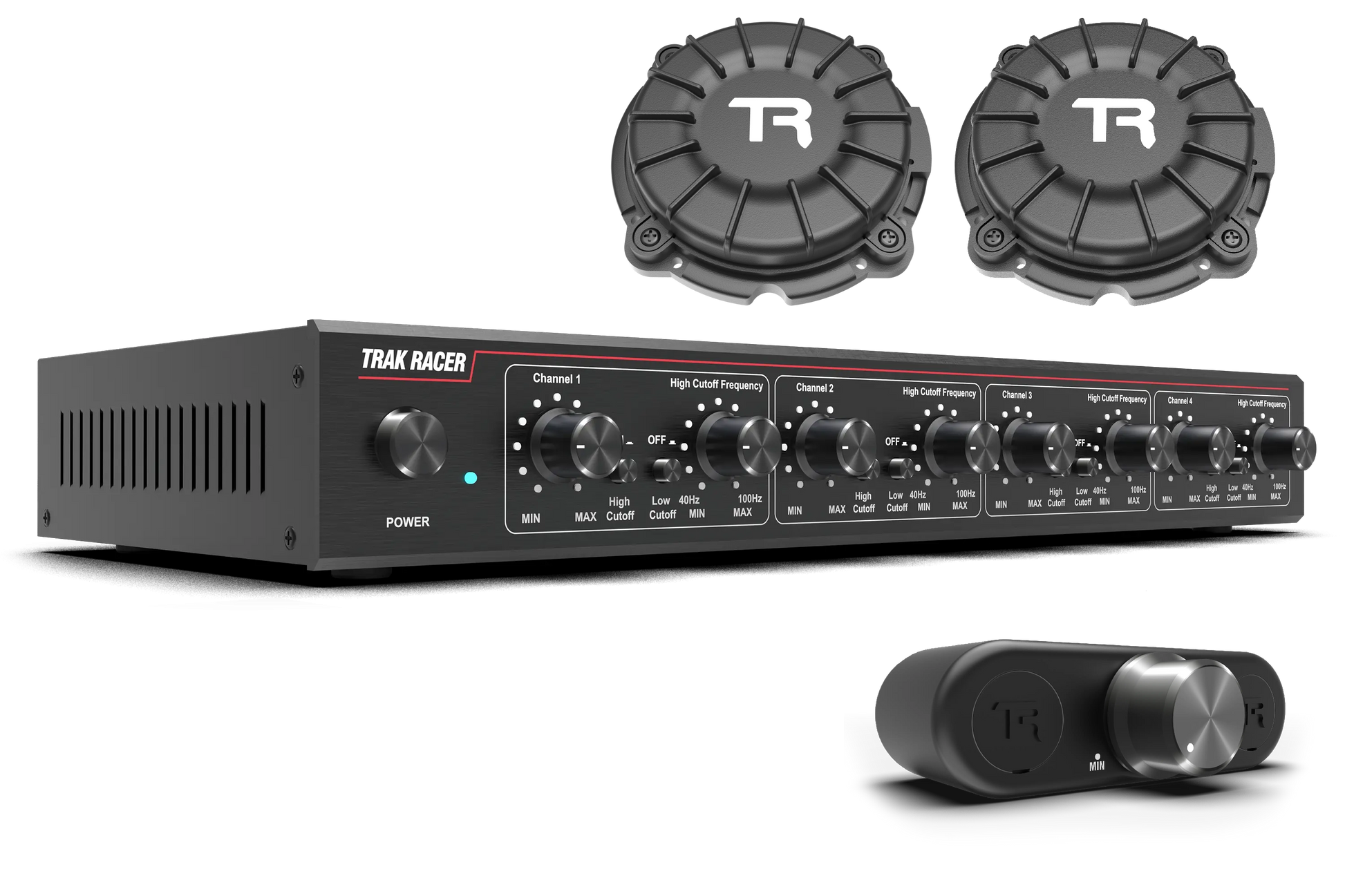

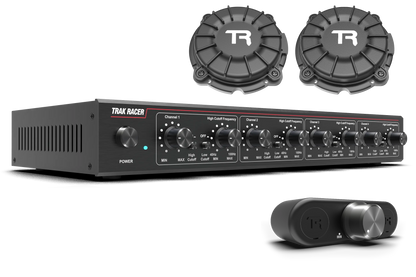

This bass shaker kit includes a 4-channel Class-D amplifier, dual compact bass shakers, universal rig mounts, and Trak Racer Device Manager software integration for customizable tactile tuning. By mounting shakers directly to pedals, shifters, and handbrakes, the system reproduces ABS activation, wheel lockup, traction loss, RPM vibration, road texture, runway turbulence, or combat effects with cleaner precision than chassis-wide systems. Adjustable low-pass filtering, multiple RCA inputs, and modular channel control allow users to fine-tune tactile zones independently for more immersive and discipline-specific simulation.

TECHNICAL SPECIFICATIONS

• Product type: Bass shaker kit with amplifier and rig mounts

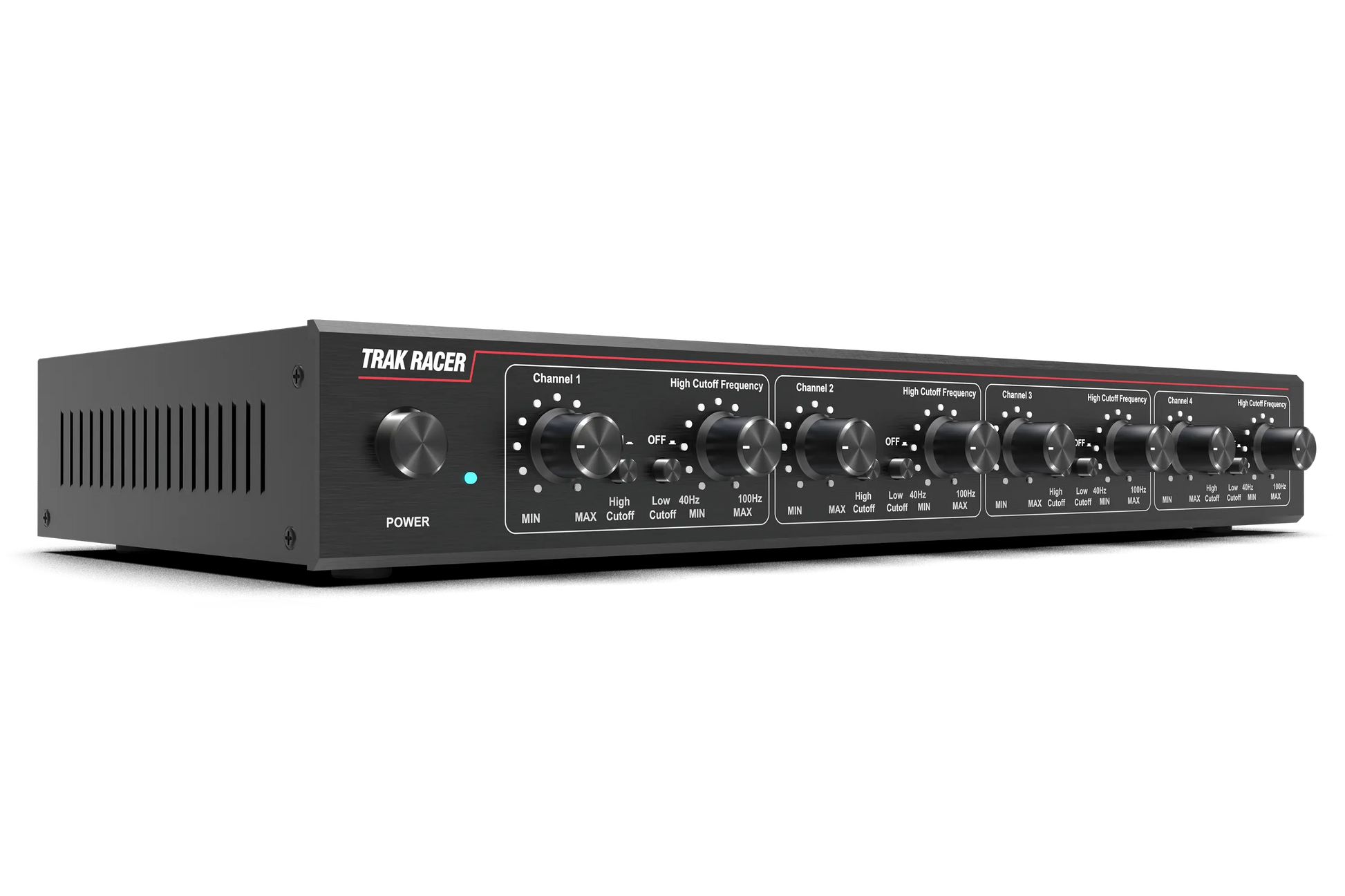

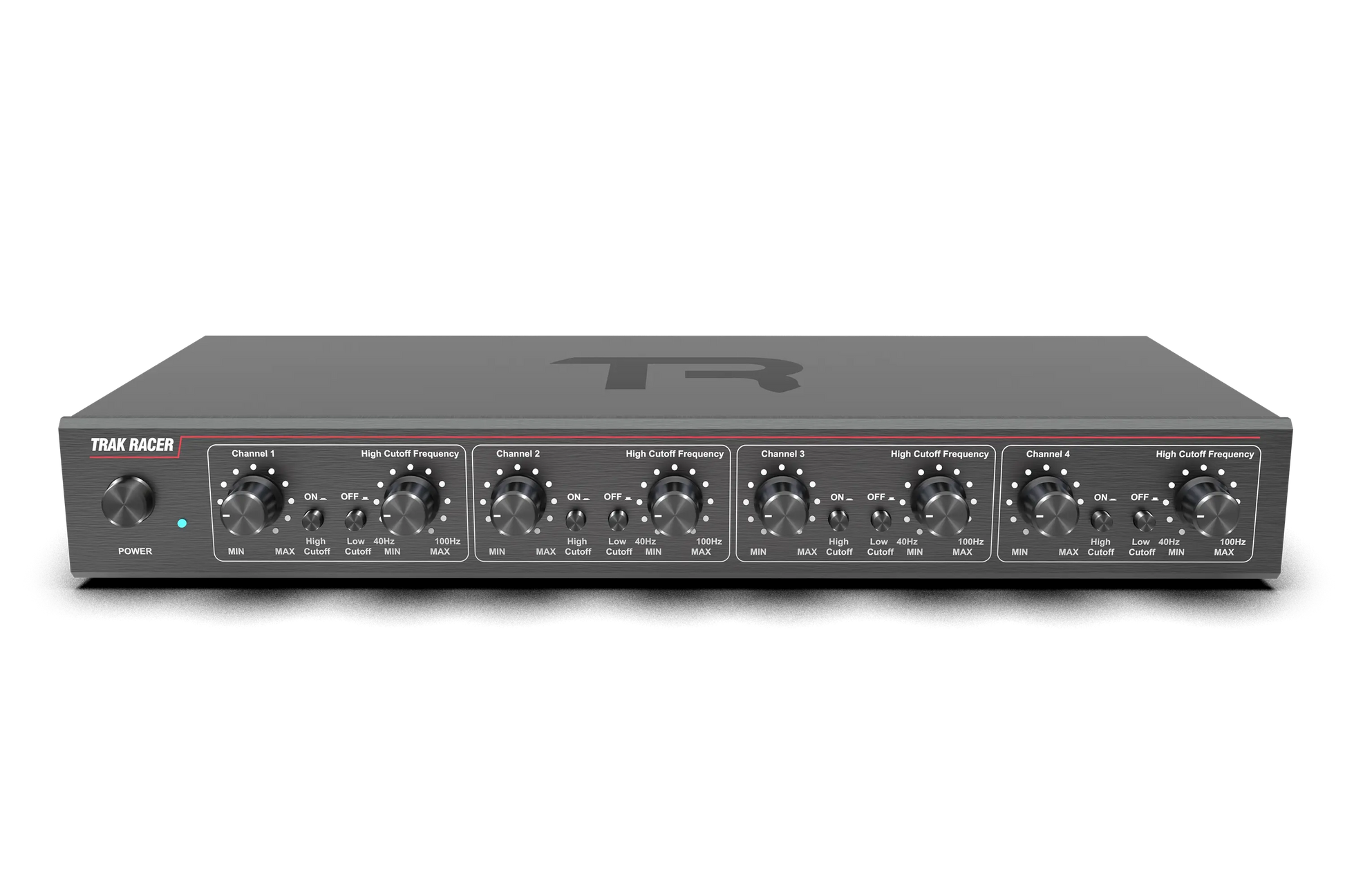

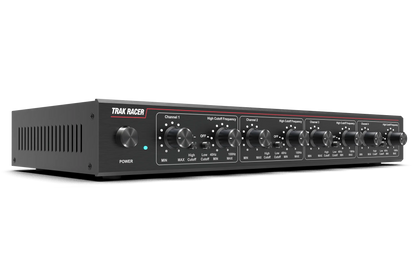

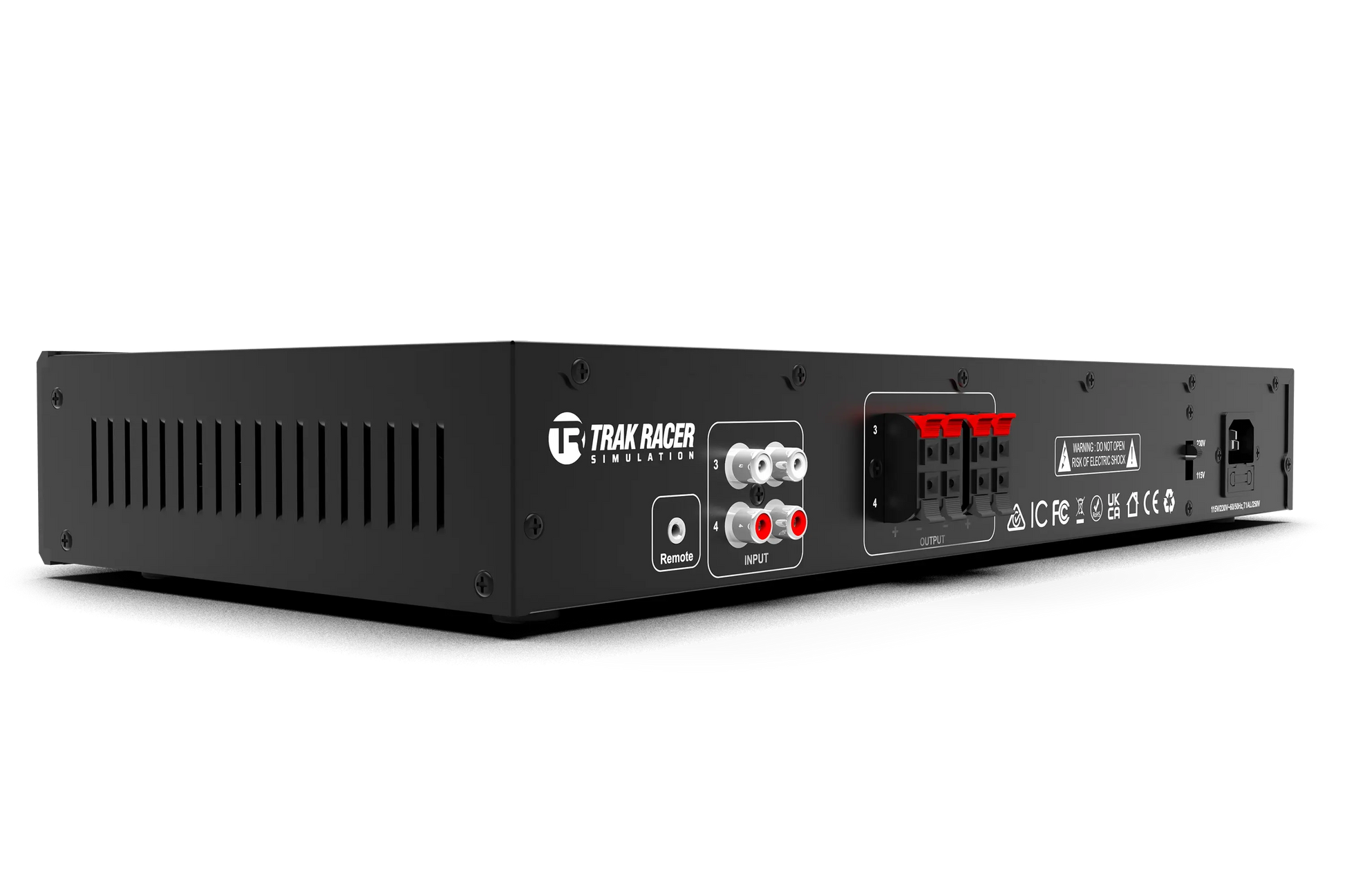

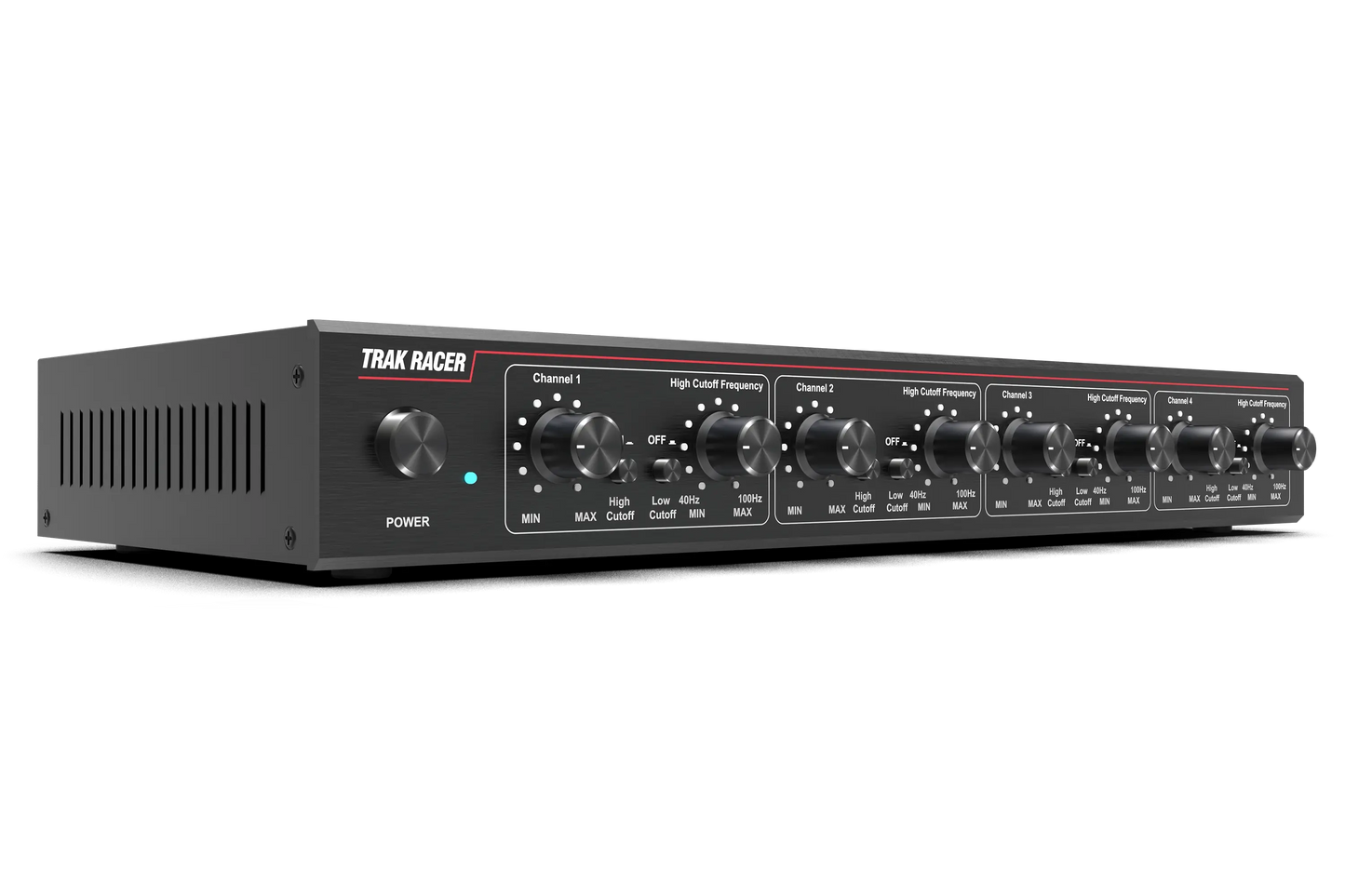

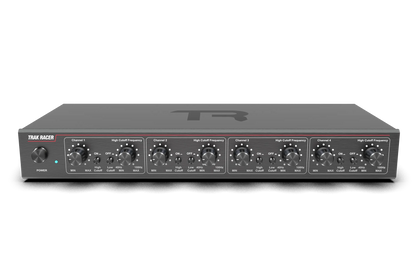

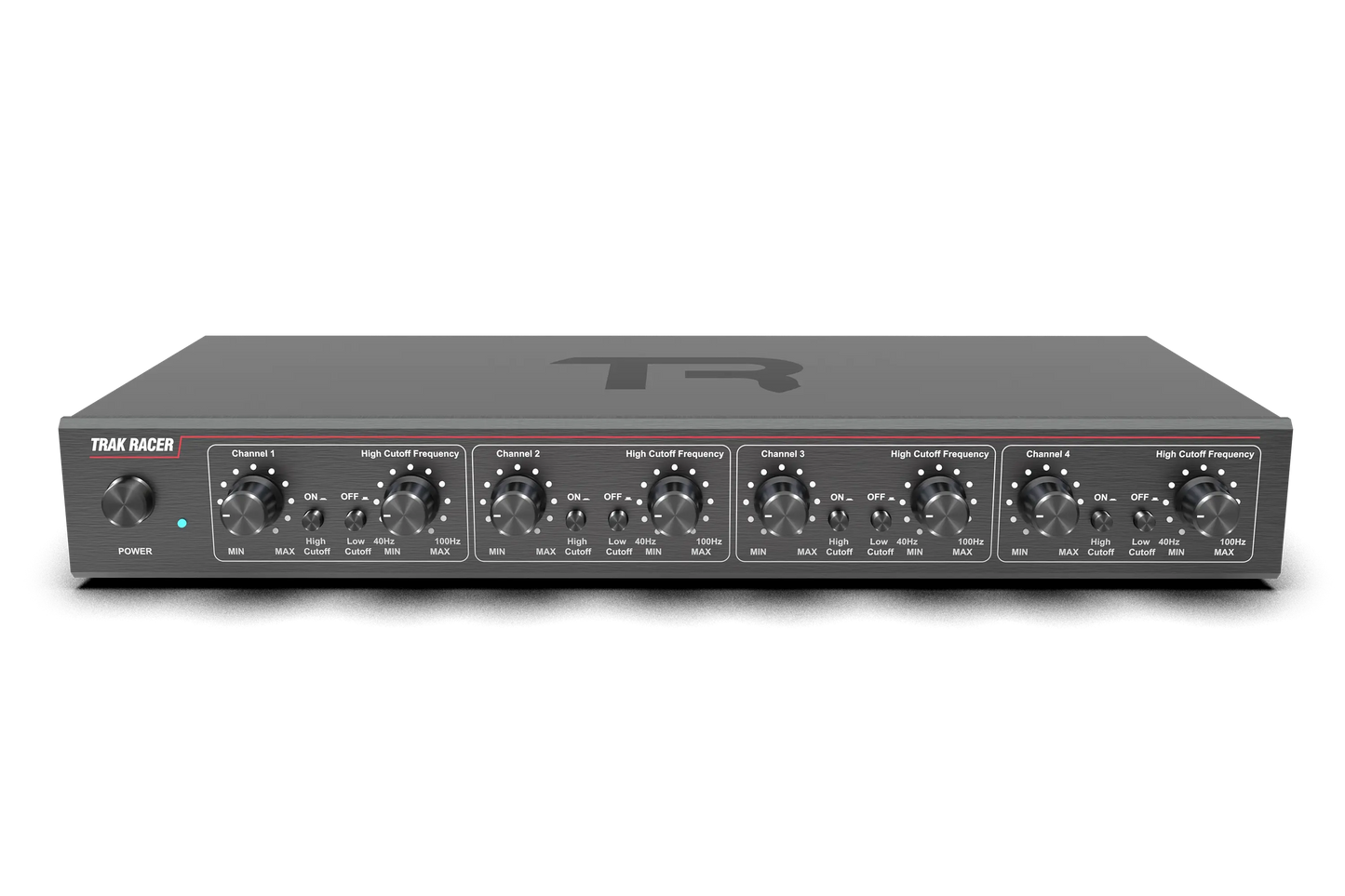

• Amplifier model: BSA4A
• Amplifier class: Class-D
• Output channels: 4
• Input channels: 4 x RCA
• Output power: 10W RMS per channel / 20W peak per channel
• Frequency response: 30–100 Hz ±3 dB
• Low-pass adjustment: 40–100 Hz
• Signal-to-noise ratio: 95 dB
• Power requirements: 115–240V AC
• Max amplifier consumption: 80W

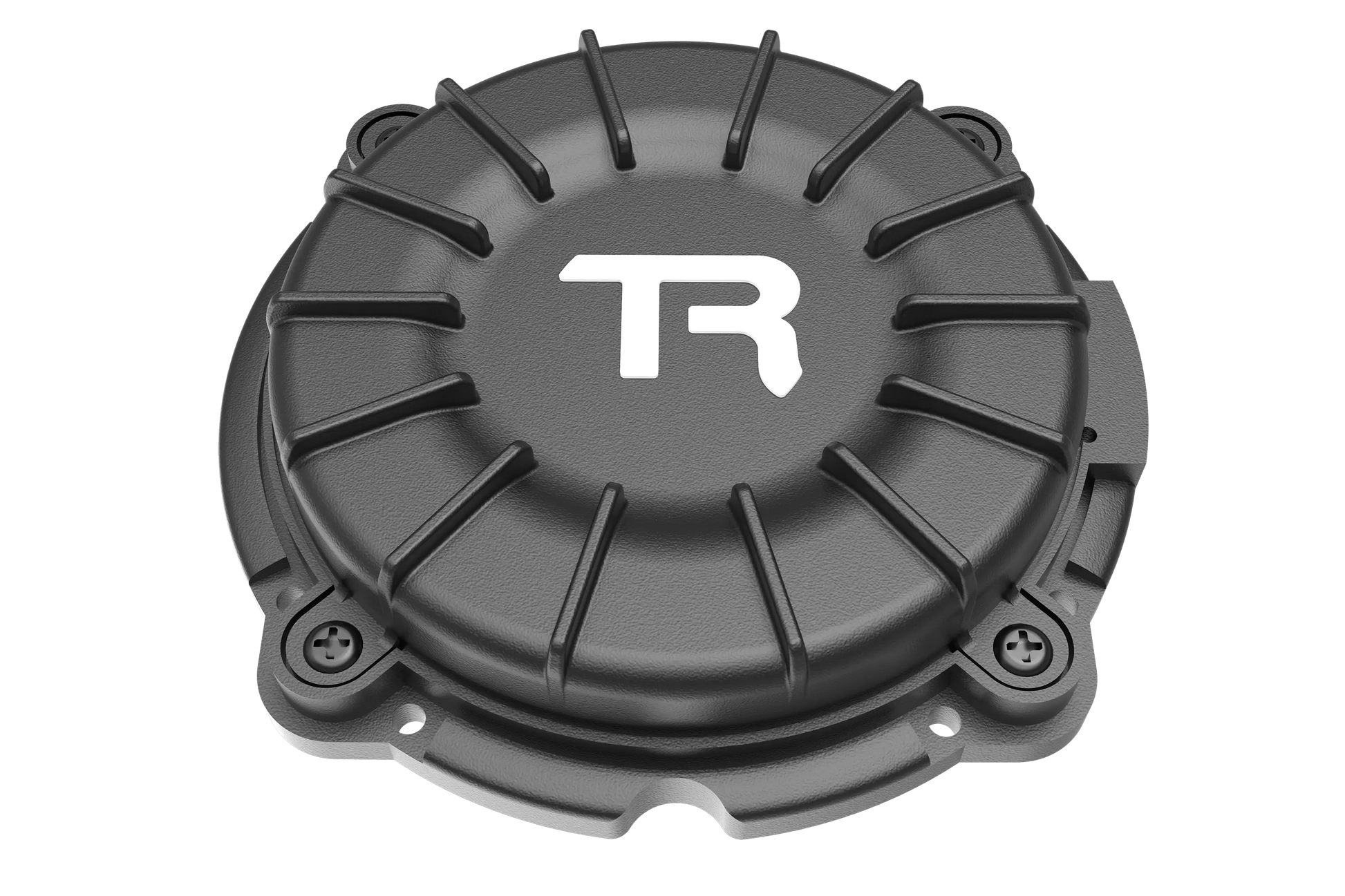

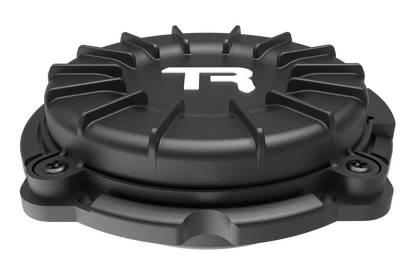

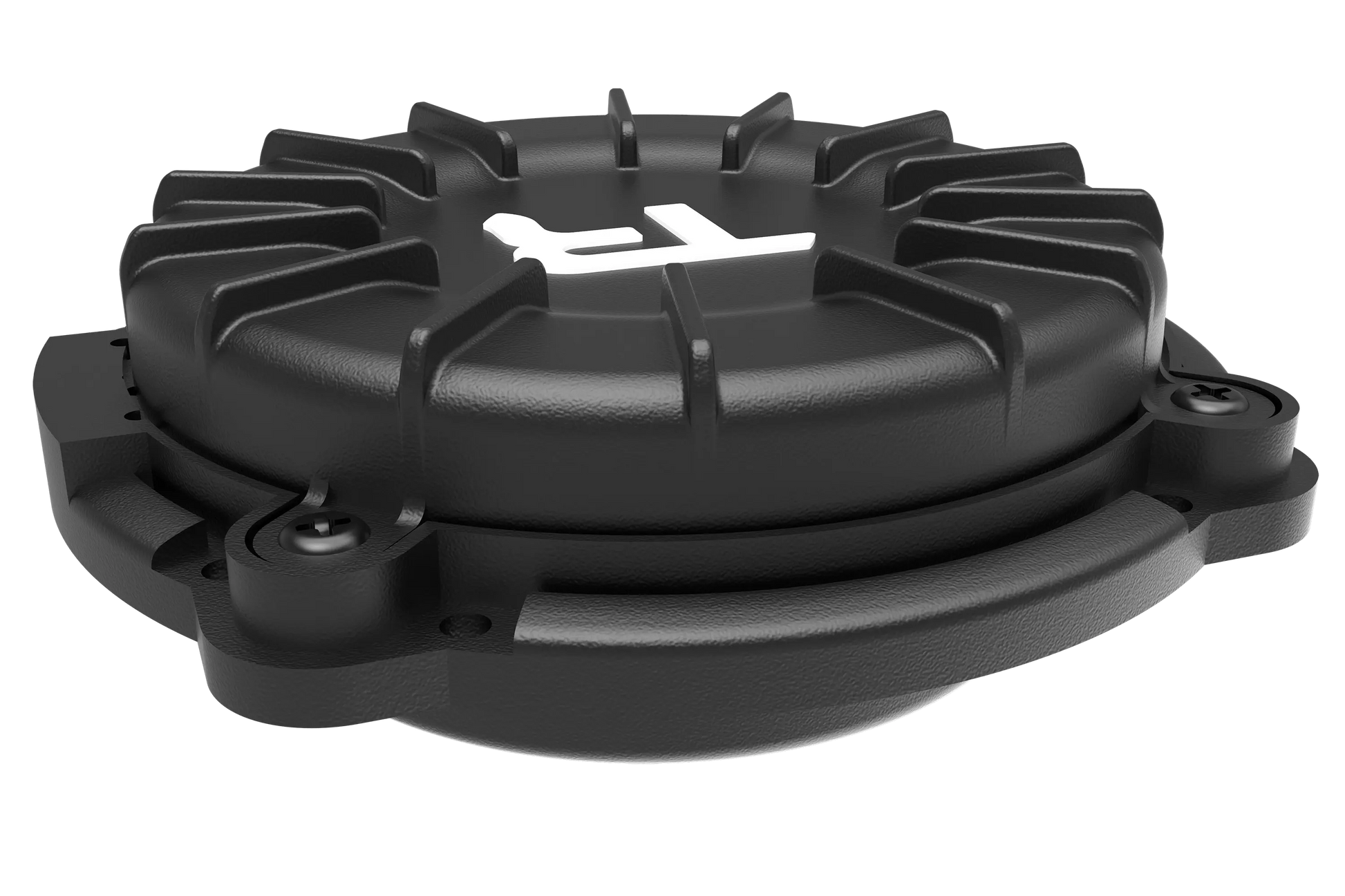

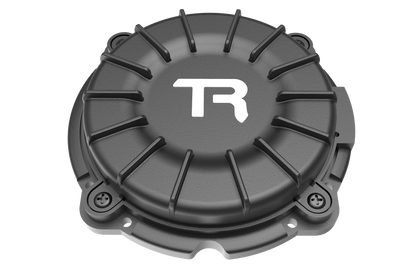

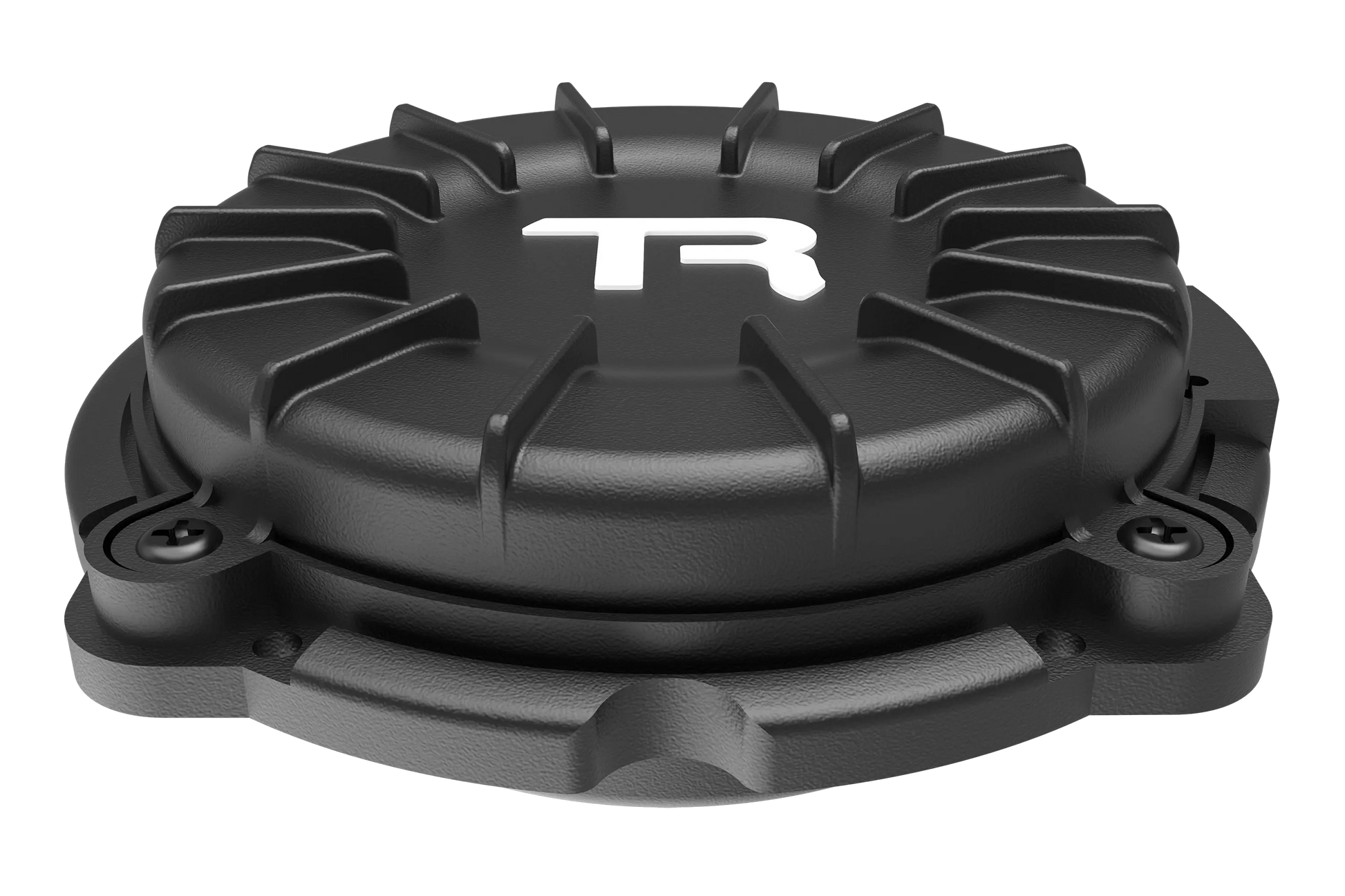

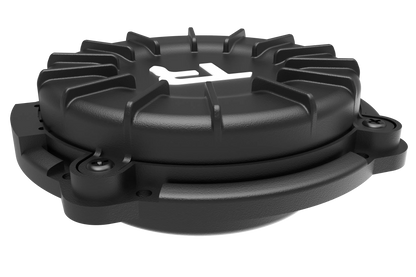

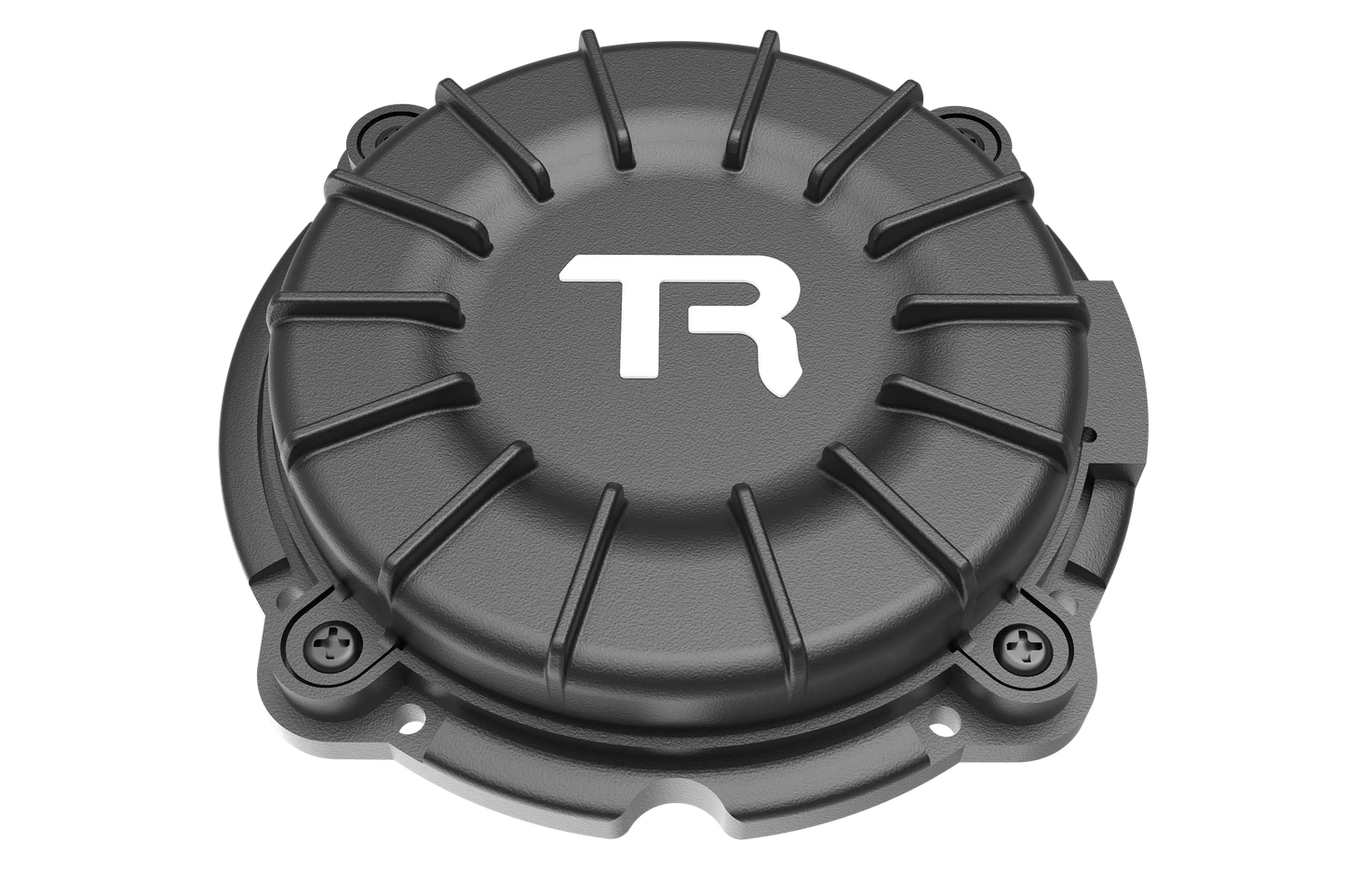

• Bass shaker model: TR-BSA10
• Bass shaker dimensions: 98 x 98 x 31 mm
• Bass shaker impedance: 8Ω ±10%
• Resonant frequency: 33 Hz ±10%
• Frequency range: 20–200 Hz
• Bass shaker nominal power: 10W
• Bass shaker max power: 20W
• Individual shaker weight: 0.35 kg
• Software support: Trak Racer Device Manager (TDM Beta)

REAL-WORLD USE / EXPERIENCE

In real racing, critical information often comes through your feet and hands before visual recognition. This bass shaker kit recreates that principle by placing tactile feedback exactly where braking, shifting, and handbrake inputs occur. In practice, this means sharper threshold braking awareness, more physical gear engagement, better rear traction understanding in drift or rally, and deeper environmental immersion across racing, flight, and gaming applications. Rather than simply adding vibration, it improves how quickly and accurately users interpret in-game vehicle behavior.
