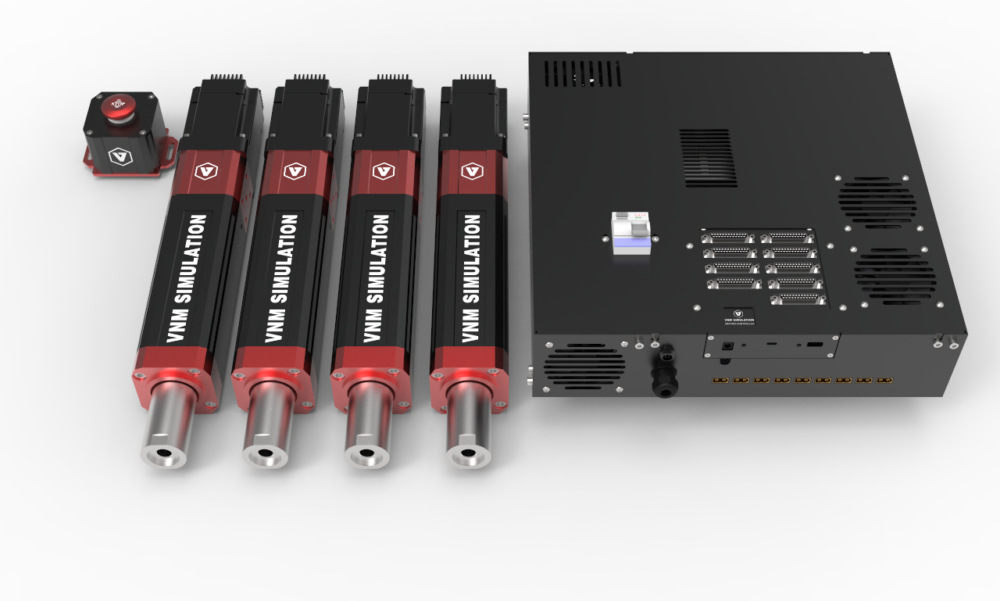

VNM Simulation 150mm 3DOF Motion Kit

A complete 3DOF motion system for aluminum profile rigs that adds real movement and force feedback to your sim racing setup. Built for drivers who want true immersion and physical feedback beyond force feedback alone.

This product is available for pre-order with a 30 to 45 day lead time. Tariffs are already paid and included in the listed price.

KEY BENEFITS

• Transforms your rig with realistic pitch, roll, and heave motion
• Improves driving feedback through physical cues you can feel
• Enhances immersion for racing, drifting, and flight simulation
• Maintains smooth and quiet operation during extended sessions
• Supports high load capacity for stable and consistent performance

WHO IT’S FOR

This system is designed for serious sim racers, enthusiasts, and professional users building a high-end motion rig. Ideal for drivers using aluminum extrusion cockpits who want to replicate real-world vehicle movement. Best suited for intermediate to advanced users ready to integrate motion into their setup.

KEY FEATURES

The VNM Simulation 3DOF motion kit includes everything required to convert a standard aluminum profile rig into a motion-enabled system. It uses four 150mm stroke actuators with ball screw drive systems for smooth and precise movement. The system is powered by industrial-grade motors and managed through a dedicated motion controller and cabinet with integrated drivers, cooling, and EMI protection. Compatibility with Sim Racing Studios software ensures flexible tuning and integration with popular racing titles. The full metal construction and anodized aluminum design provide durability and long-term reliability.

TECHNICAL SPECIFICATIONS

• Motion type: 3DOF motion system
• Actuator stroke: 150mm
• Maximum speed: 250mm per second
• Load capacity: 200kg
• Motor type: ASSD 80ST-M02430 motor and driver assembly
• Actuator construction: Aluminum extrusion with anodized coating
• Drive system: TBI ball screw
• Actuator dimensions: 90 x 80 x 560mm, 710mm at maximum travel
• Actuator weight: 12kg each
• Total system weight: 85kg

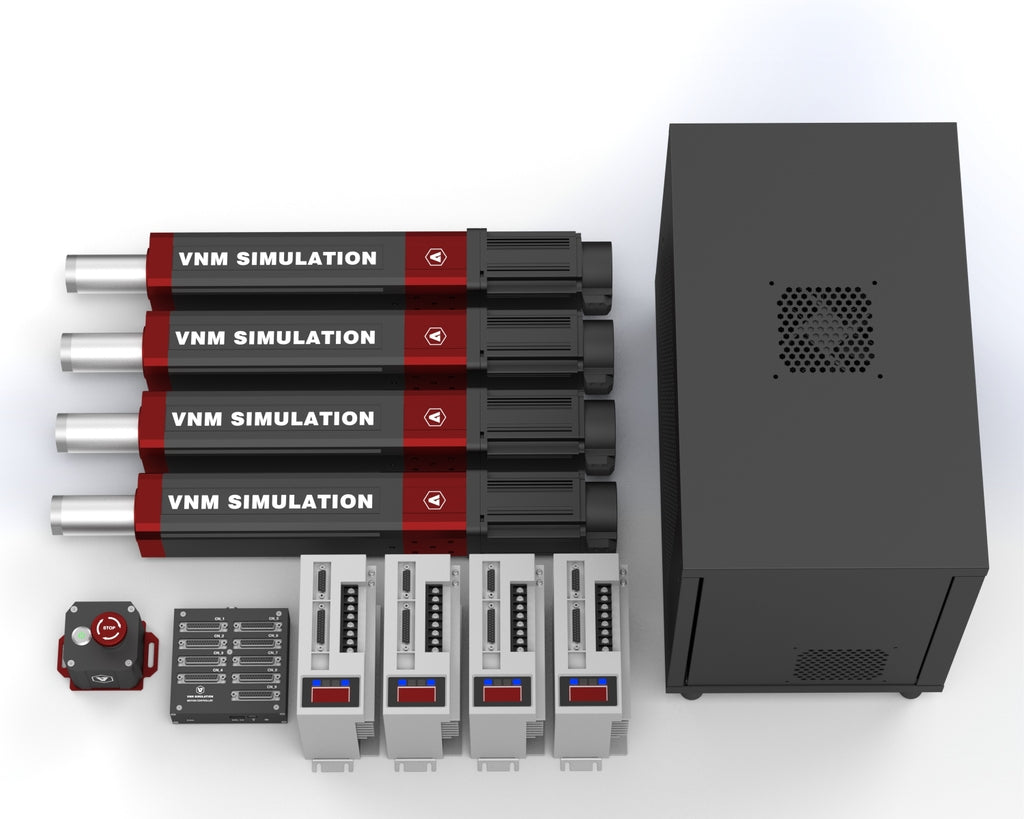

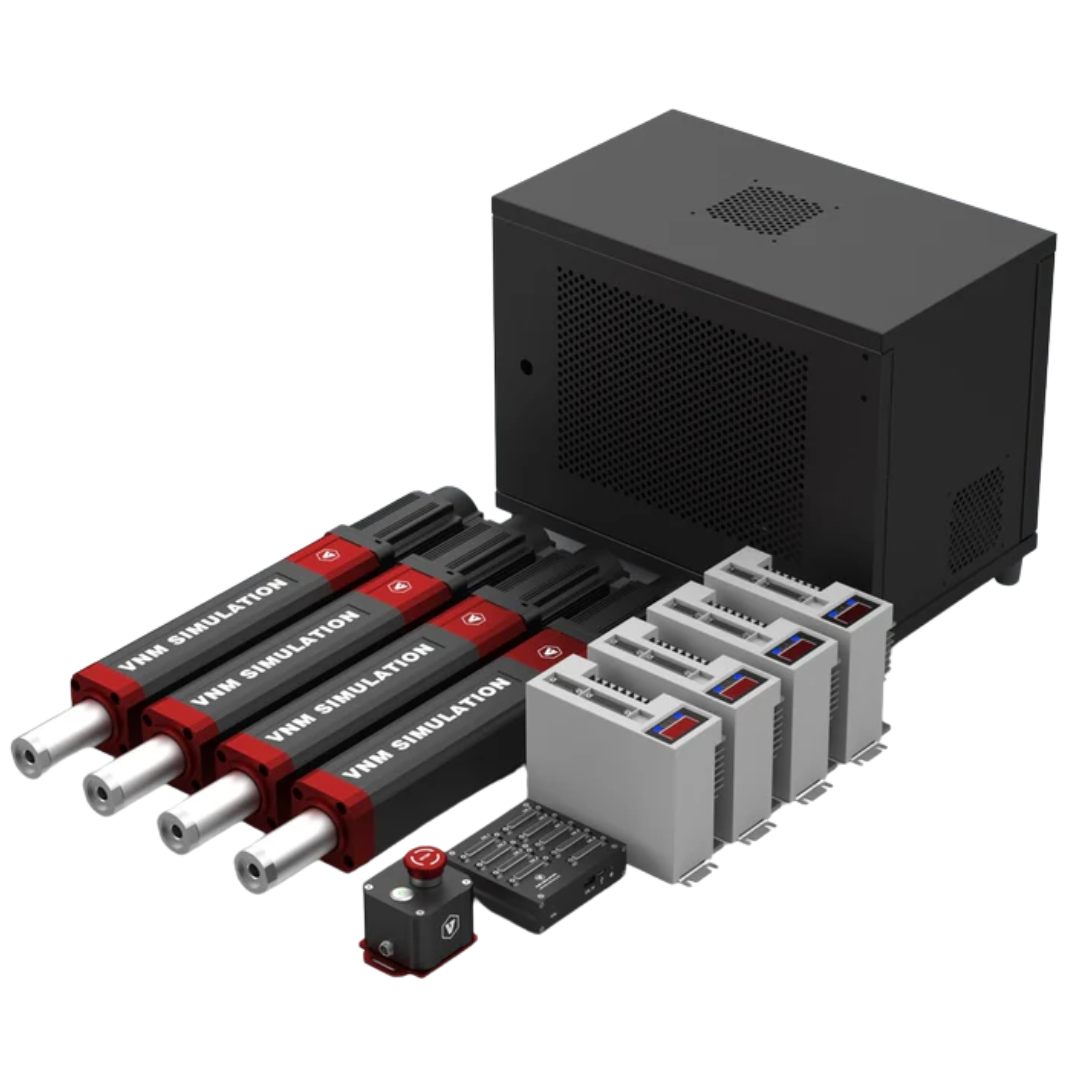

Motion Kit Includes:

• 4 x VNM Actuator 150
• 4 x VNM Actuator U-Bracket
• 1 x VNM Motion cabinet V2 (Compact version)
• 1 x Meanwell 3000W Power supply
• 1 x VNM Motion EMC Stop Button

Once installed, the VNM Simulation 3DOF motion kit adds a physical layer to your driving that force feedback alone cannot replicate. You feel weight transfer under braking, chassis rotation through corners, and elevation changes on track. The motion is controlled and precise rather than exaggerated, helping you read the car more naturally and react faster. This translates into better consistency, improved car control, and a more engaging driving experience across every session.
