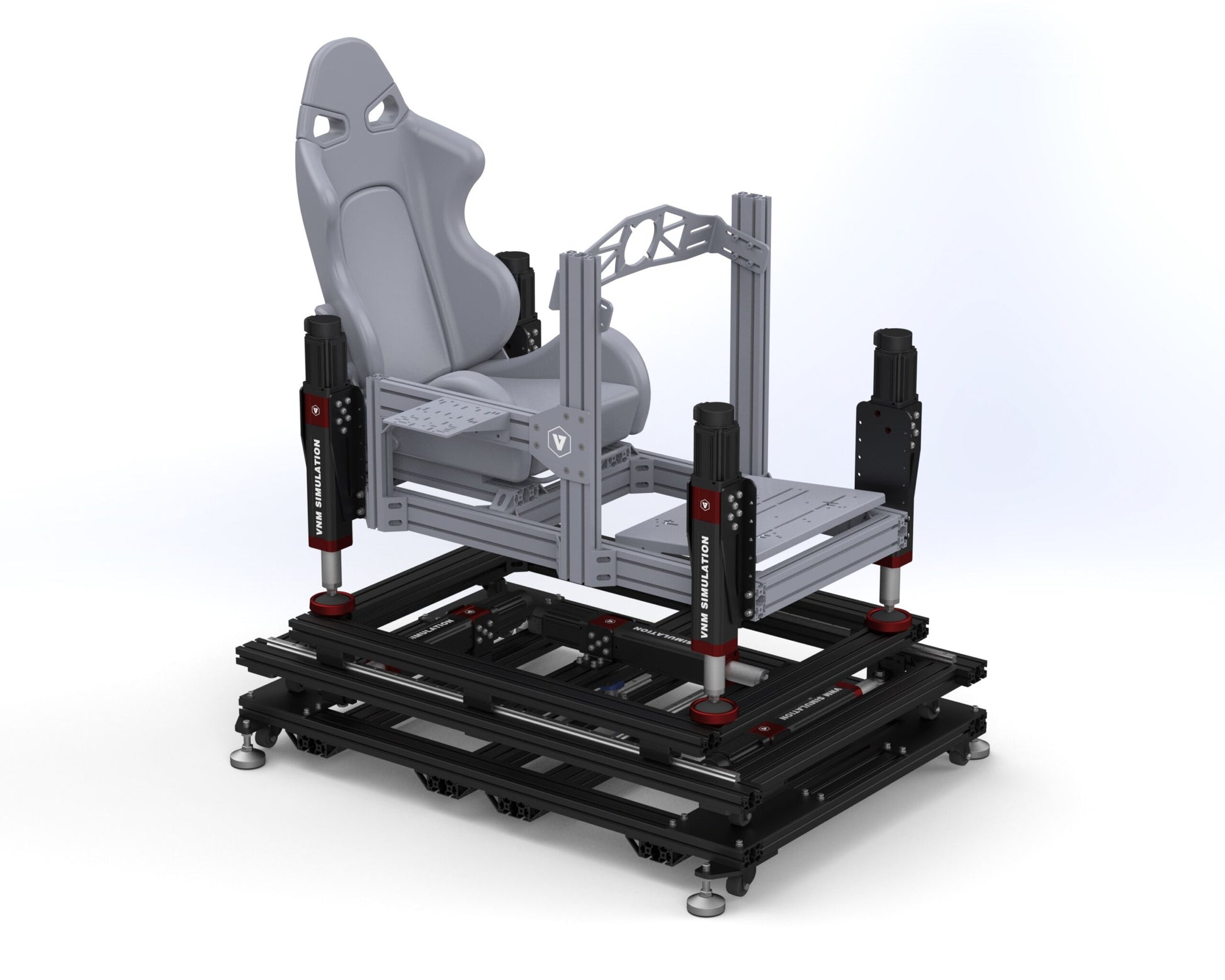

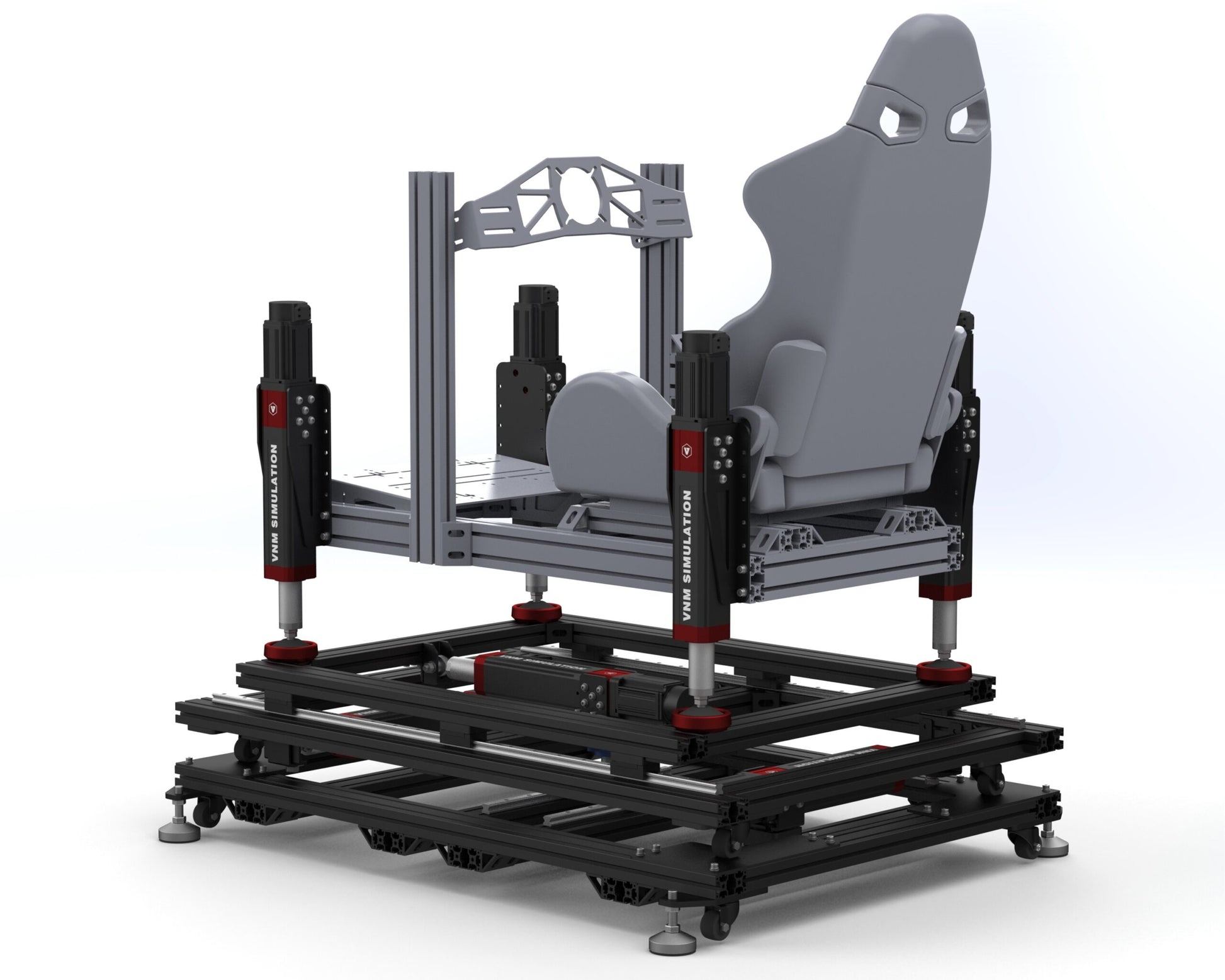

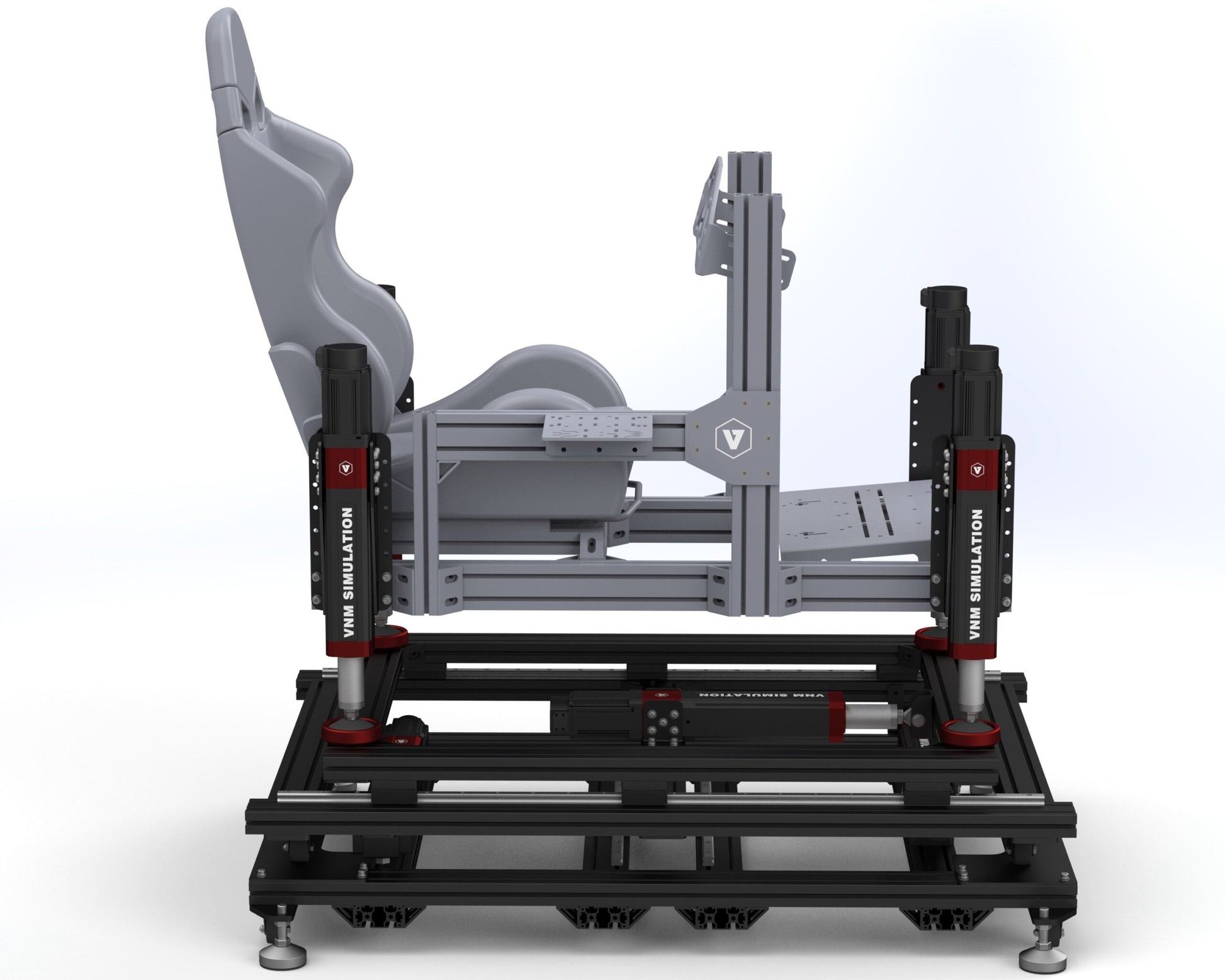

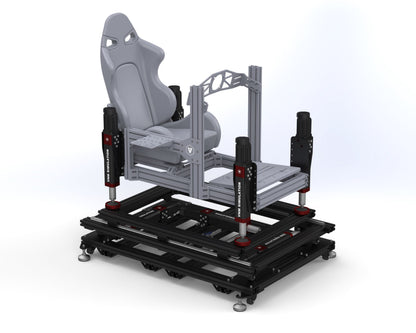

VNM Simulation 6DOF Motion Platform

A full 6DOF motion platform kit designed to bring real movement and force feedback into your sim racing or flight setup. Built for serious users who want maximum immersion and precise motion replication.

KEY BENEFITS

• Experience full motion simulation with pitch, roll, heave, surge, sway, and yaw
• Feel acceleration, braking, and cornering forces in real time
• Improve immersion and driving awareness through physical motion cues
• Support a wide range of racing and flight simulation titles
• Upgrade your existing aluminum cockpit into a professional motion system

WHO IT’S FOR

This system is designed for advanced sim racers, flight sim users, and professional training environments looking to achieve true motion simulation. Ideal for users with aluminum extrusion cockpits who want to transform their static setup into a fully dynamic platform for racing, flight, or immersive simulation experiences.

KEY FEATURES

The VNM Simulation 6DOF Motion Platform Sim Racing Motion System Kit includes a complete actuator-based system designed to integrate with aluminum extrusion chassis. It uses seven high-performance actuators to deliver precise and responsive motion across multiple axes. The system is constructed from durable aluminum with hard anodized finishes and uses ball screw technology for smooth and quiet operation. A dedicated motion cabinet, controller, and emergency stop system provide full control and safety, while compatibility with Sim Racing Studios software allows seamless integration with a wide range of simulation titles.

TECHNICAL SPECIFICATIONS

• Motion type: 6 degrees of freedom motion platform
• Actuators included: 7 x 150 mm stroke actuators
• Actuator speed: Up to 250 mm per second
• Load capacity per actuator: 200 kg
• Motor: ASSD 80ST M02430 motor and driver assembly
• Actuator construction: Aluminum extrusion with anodized finish
• Ball screw type: TBI brand ball screws
• System weight: 85 kg
• Actuator dimensions: 90 x 80 x 560 mm, 710 mm at maximum travel
• Included components: Actuator brackets, motion cabinet with drivers and cooling, motion controller, emergency stop button, actuator feet
• Compatibility: Aluminum extrusion T slot chassis, Sim Racing Studios motion software, SimHub Software (recommended)

REAL-WORLD USE / EXPERIENCE

In real use, the VNM Simulation 6DOF Motion Platform Sim Racing Motion System Kit transforms your setup into a fully dynamic environment where every movement is felt. Acceleration pushes you back, braking shifts weight forward, and cornering creates realistic lateral forces. The system delivers smooth and responsive motion that enhances immersion while also providing useful feedback for driving precision. Whether racing, flying, or exploring simulation environments, the added motion creates a deeper connection between what you see and what you feel.

Downloads:  6 DOF Assembly Manual
