V2 Pro 2CH 200W Low-Frequency Class-D Amplifier & Bass Shaker Kit

The Trak Racer V2 Pro 2CH 200W Bass Shaker Kit delivers powerful low-frequency tactile feedback for sim racing, flight simulation, gaming, and media. With a TR-BSA100 tactile transducer and 2-channel Class-D amplifier, the system lets you physically feel engine vibration, road texture, impacts, turbulence, and other low-frequency effects.

KEY BENEFITS

• Adds physical feedback for engine RPM, exhaust vibration, kerbs, bumps, impacts, and other low-frequency effects
• Creates a more immersive connection between simulator telemetry, audio, and physical feedback
• Provides adjustable low-frequency response for precise control over the effects you feel
• 2-channel amplifier supports expansion with an optional second bass shaker
• 200W Class-D amplifier delivers efficient, controlled power for demanding tactile applications
• Works across sim racing, flight simulation, FPS gaming, music, and other low-frequency applications

WHO IT’S FOR

Designed for sim racers, flight sim pilots, and gaming enthusiasts who want to add physical feedback to their setup. The system is suitable for drivers of any experience level and can be integrated with compatible simulator seats, cockpit frames, rigs, and motion platforms. It is especially useful for users who want more detailed feedback from racing titles such as iRacing, Assetto Corsa Competizione, and rFactor 2, as well as flight simulators including Microsoft Flight Simulator and DCS World.

KEY FEATURES

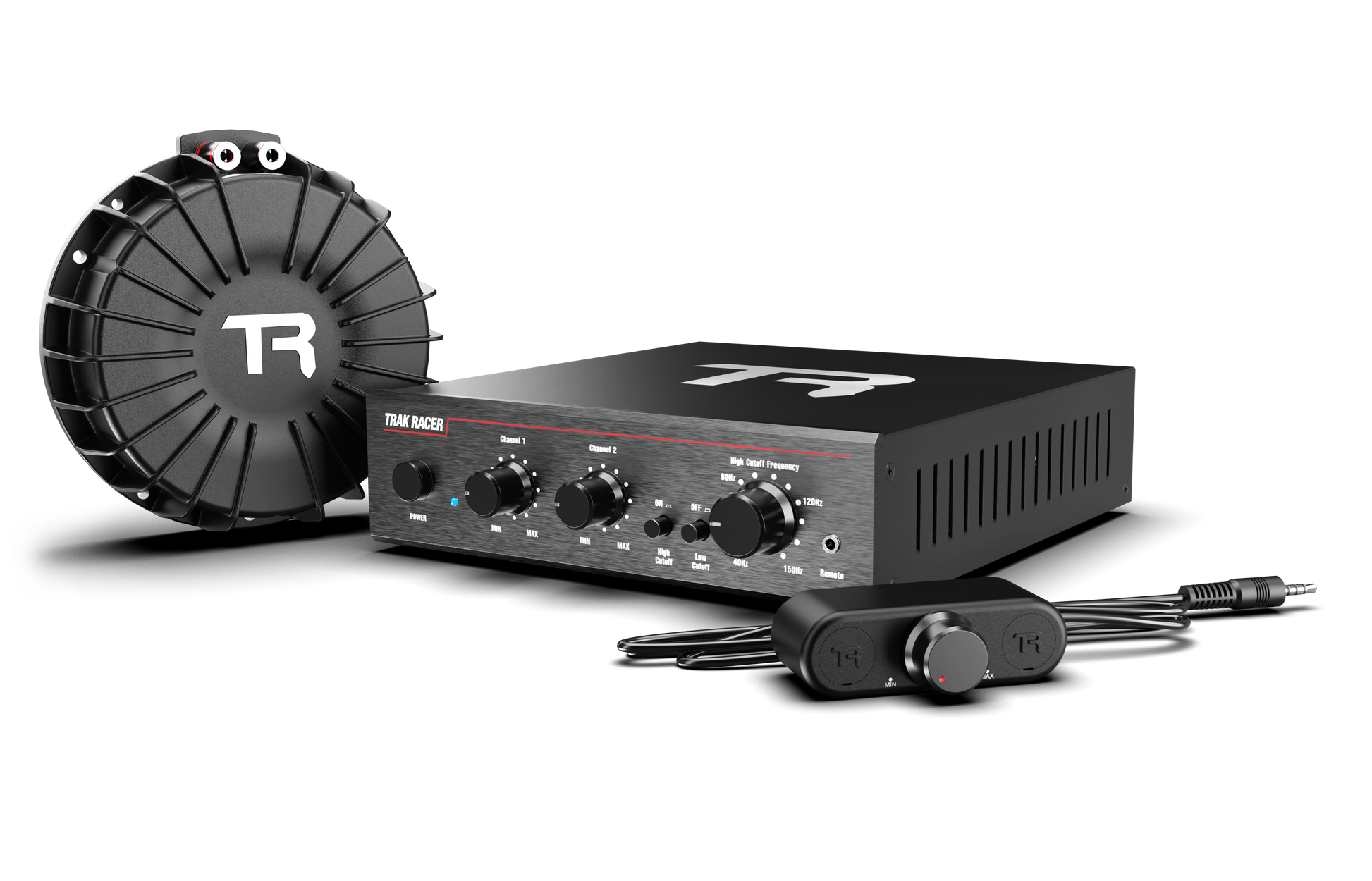

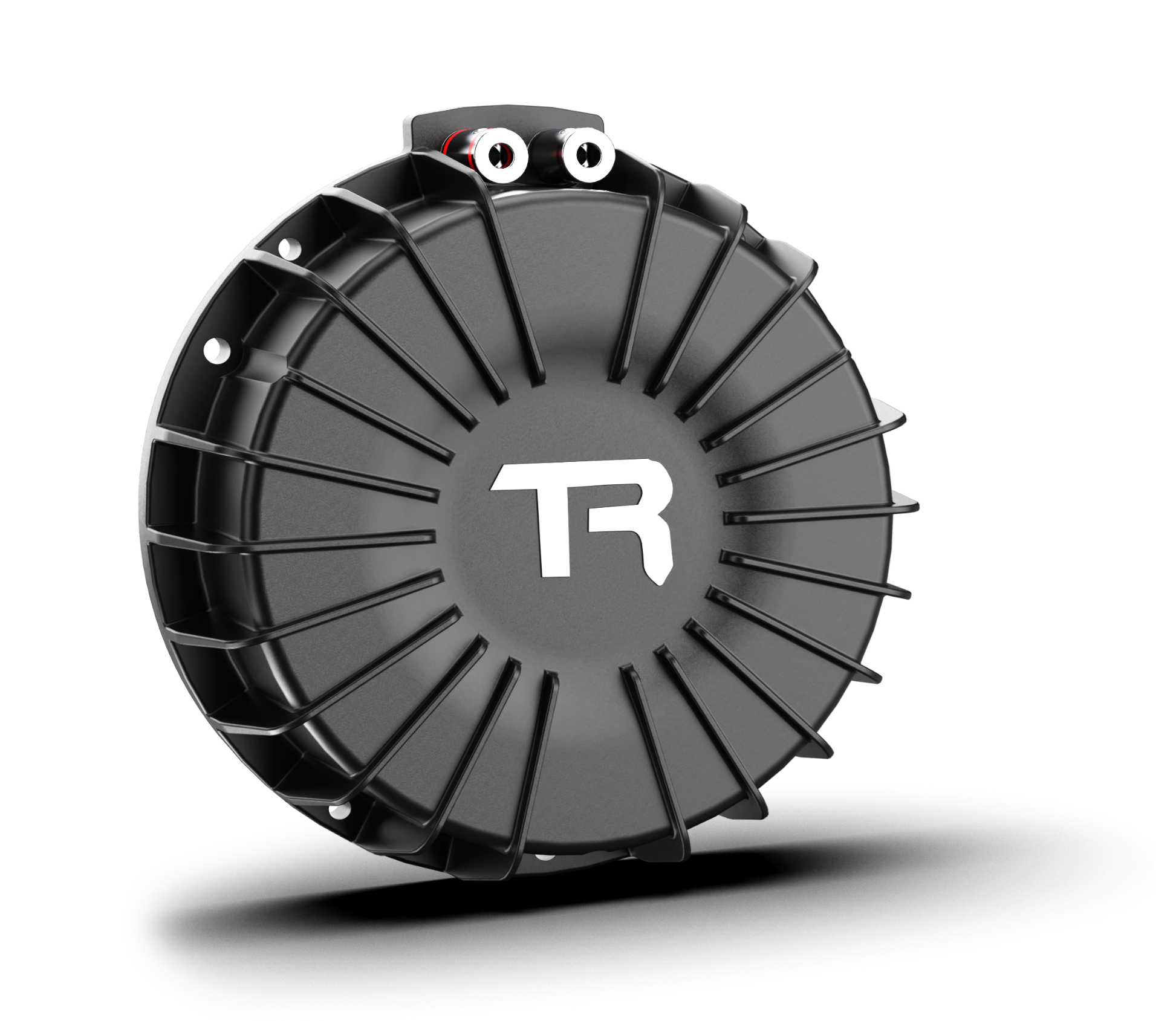

The Trak Racer V2 Pro 2CH 200W Bass Shaker Kit combines the TR-BSA100 low-frequency tactile transducer with the TR-BSA-KIT-200 stereo Class-D amplifier. The bass shaker operates across a 20 to 120 Hz frequency range with 50W nominal and 100W maximum power handling, while the amplifier provides two output channels, RCA and 3.5mm inputs, and adjustable 50 to 200 Hz low-pass filtering. The included 2m 16-gauge speaker wire provides a heavy-duty connection between the amplifier and transducer. This sim racing tactile feedback system can also be expanded with an optional second bass shaker for additional feedback coverage.

TECHNICAL SPECIFICATIONS

• Kit model: V2 Pro 2CH 200W Bass Shaker Kit

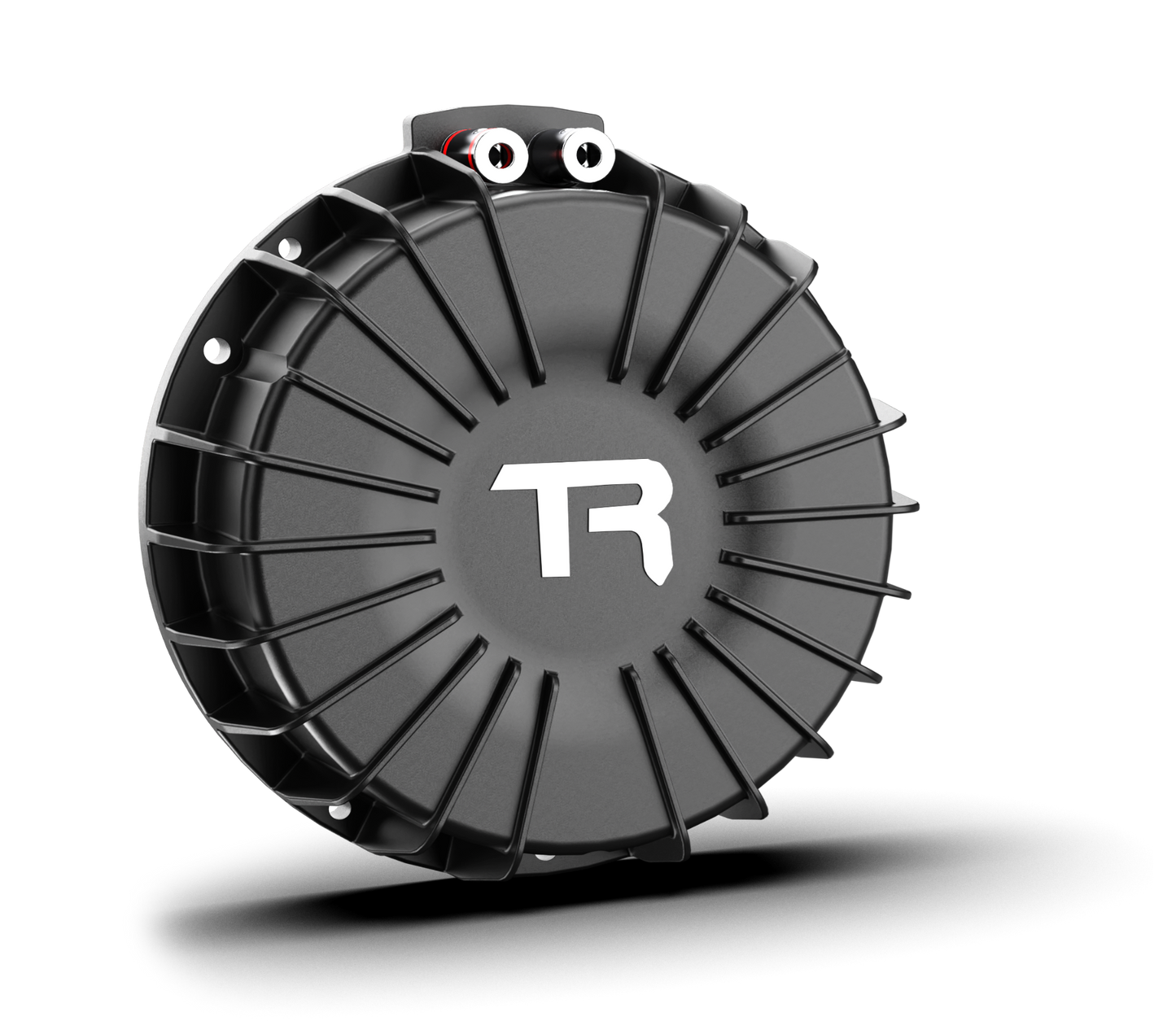

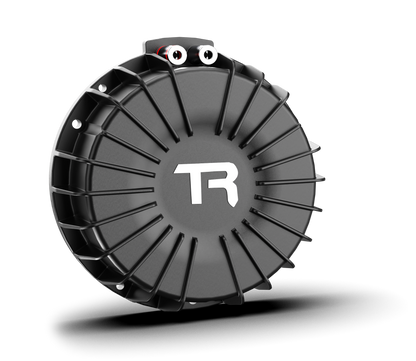

• Bass shaker model: TR-BSA100
• Bass shaker type: Low-frequency tactile transducer
• Bass shaker dimensions: 155 x 51 mm
• Bass shaker impedance: 4 ohm
• Bass shaker nominal power: 50W
• Bass shaker maximum power: 100W
• Bass shaker frequency range: 20 to 120 Hz
• Bass shaker weight: 1.25 kg

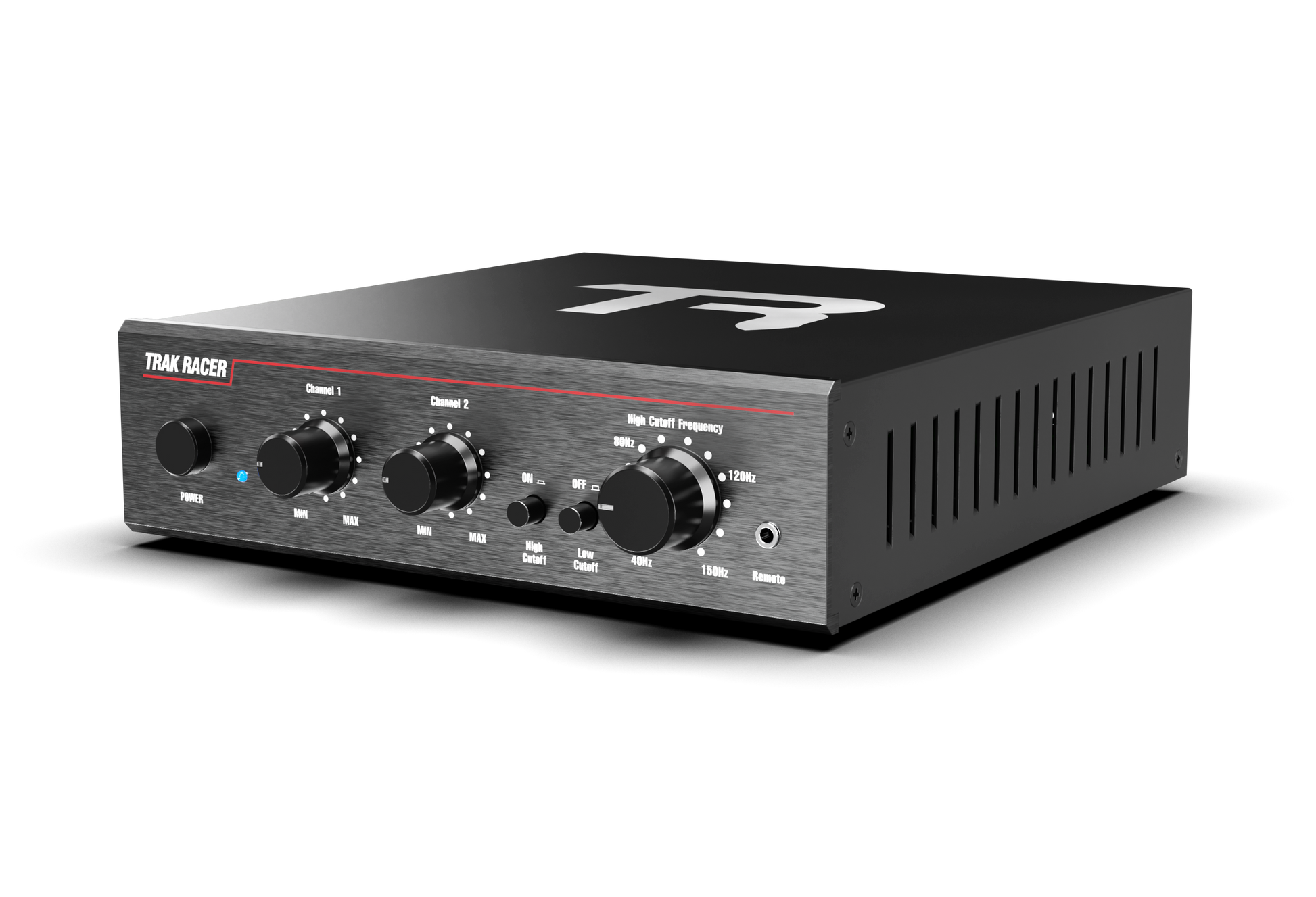

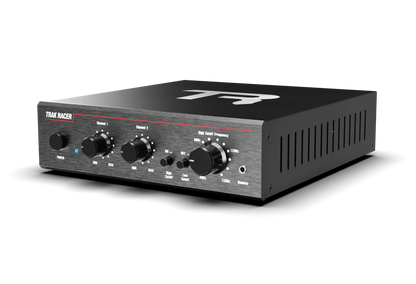

• Amplifier model: TR-BSA-KIT-200
• Amplifier class: Class-D
• Amplifier output channels: 2
• Amplifier input channels: 2
• Audio inputs: RCA and 3.5mm audio jack
• Amplifier output power: 100W RMS at 4 ohm / 50W RMS at 8 ohm
• Input sensitivity: 250 mV
• Amplifier frequency response: 30 to 200 Hz, plus or minus 3 dB
• Variable low-pass adjustment: 50 to 200 Hz
• Total harmonic distortion: 1% stereo / 0.05% mono
• Signal-to-noise ratio: 95 dB at 100 Hz A-weighted
• Power requirements: 110 to 240V AC
• Maximum power consumption: 313W
• Standby power rating: 10W
• Auto turn-on sensitivity: 10 mV
• Included speaker wire: 2m / 6.6ft 16-gauge
• Included audio connections: RCA / 3.5mm
• Expandability: Supports an optional second bass shaker

REAL-WORLD USE / EXPERIENCE

Mounted to a compatible simulator seat or cockpit, the TR-BSA100 converts low-frequency signals into physical vibration you can feel through the rig. In sim racing, this can bring engine RPM, exhaust resonance, kerbs, bumps, and impacts into the cockpit instead of relying on sound and force feedback alone. In flight simulation, the same system can reproduce runway vibration, turbulence, and touchdown effects. Adjustable low-pass control allows the response to be tuned around the frequencies and effects that matter most for your setup.
